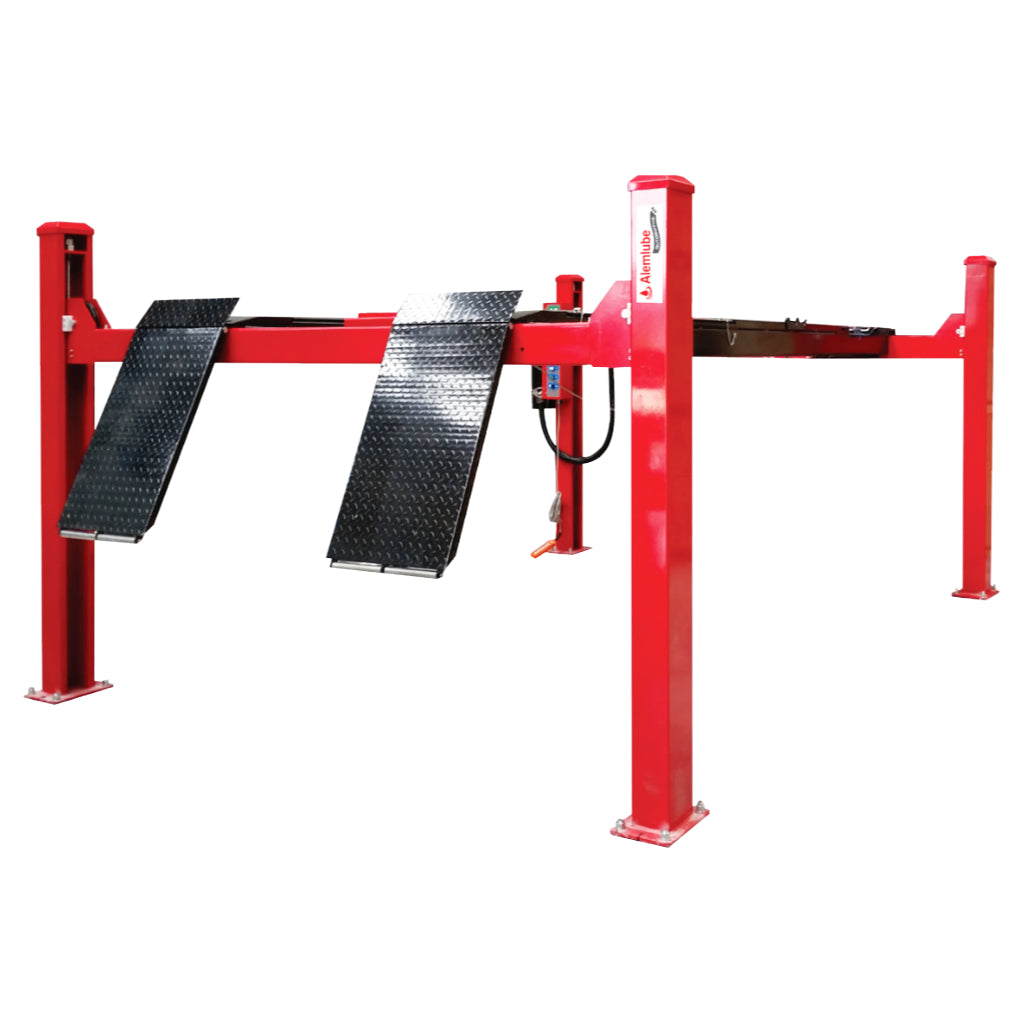

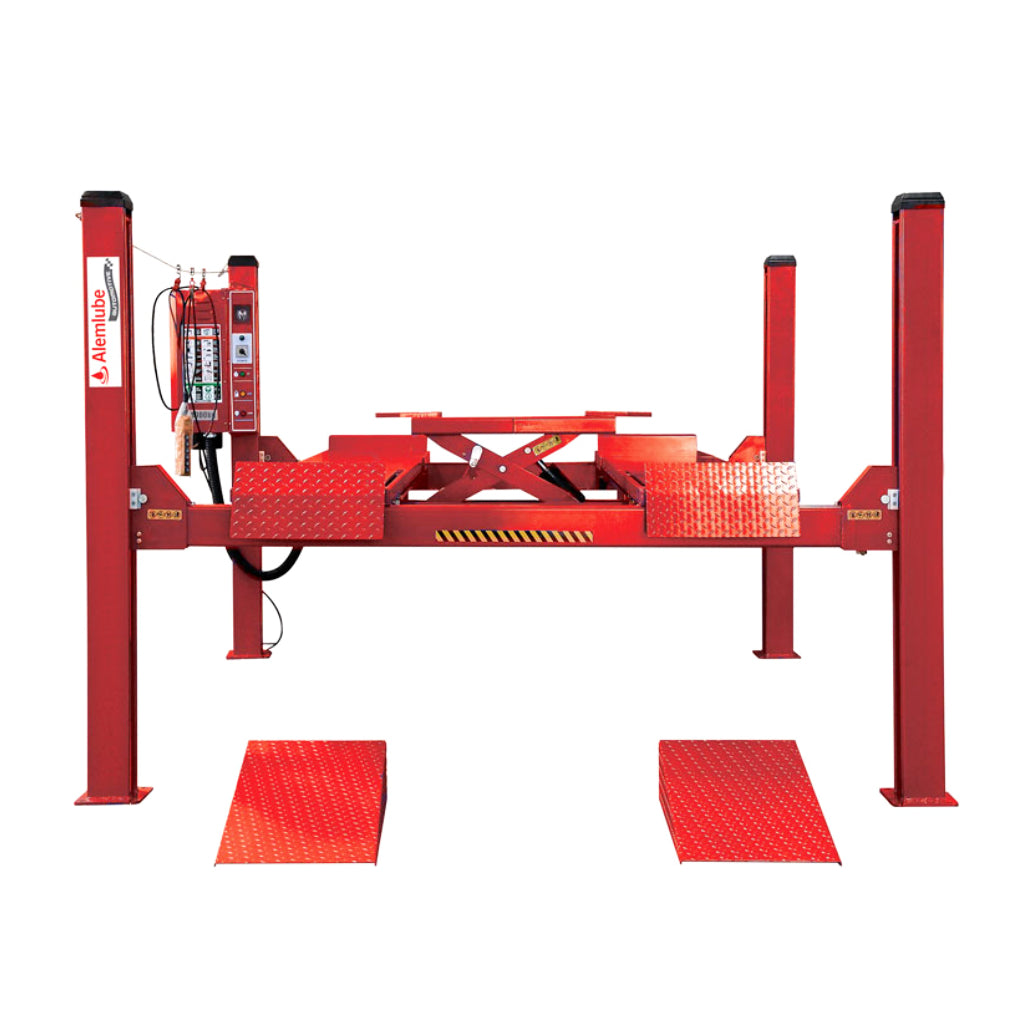

AA404PA-WF - Vehicle Hoist

ALEAA404PA-WF

Vendor: Alemlube

$14,087.00
$14,087.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.
View full details

The AA404PA-WF 4.0t 4-Post Wheel Alignment Hoist has been designed for precise wheel alignment procedures and general under vehicle service operations Includes turntable recesses & rear slip plates for wheel alignment.

Electric/Hydraulic Jacking beams are also included, permitting the operator to lift the wheels free of the platform Manufactured with a hydraulic cylinder located in the fixed platform and is perfectly protected.

Heavy duty lifting capacity of 4,000kg with Integrated 2000kg Jacking beams x 2, operated via control panel and or wired remote control.

Lifting Speed: Main Hoist: 50sec, Jacking beam: 8sec Lowering Speed: Main Hoist: 35sec, Jacking beam 5-15sec.

Maximum lifting height of hoist 1,800mm with Jacking beam 510mm.

The AA404PA-WF is a functional, reliable and profit generating addition to any busy automotive workshop and is supplied with an economical 3 Phase motor.

SPECIFICATIONS

  • 4 post hoist designed for precise wheel alignment procedures and general under-vehicle service operations
  • Heavy duty lifting capacity of 4,000kg
  • Integrated 2 tonne Jacking beams x 2
  • Overall length of 5,704mm
  • Platform Length of 4,610mm
  • Integrated rear wheel slip-plates
  • Turntable recesses with cover plates
  • Maximum lifting height of hoist 1,800mm with Jacking beam 510mm
  • Minimum lowered height of 225mm with Jacking beam 190mm
  • Lifting Speed: Main Hoist: 50sec, Jacking beam: 8sec
  • Lowering Speed: Main Hoist: 35sec, Jacking beam 5-15sec
  • Wired remote control for hoist and Jacking beams
  • Economical 3 phase power
  • Compliant with Australian Standards
  • Total weight 1,600kg
