Note: Some generator configuration are considered a "special build" and will take a little longer to prepare.

1 2

Diesel Generator 6.8KVA - Millers Falls GSD7500E RCD IP66 32AMP

ATXGSD7500E

Vendor: Tool Nation

$1,607.00
$1,607.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.
View full details

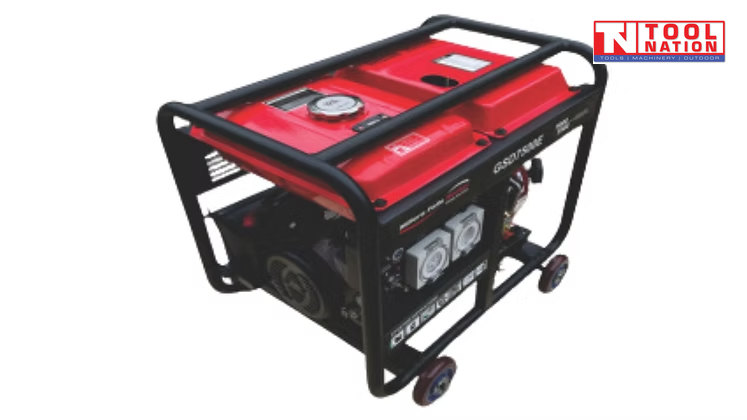

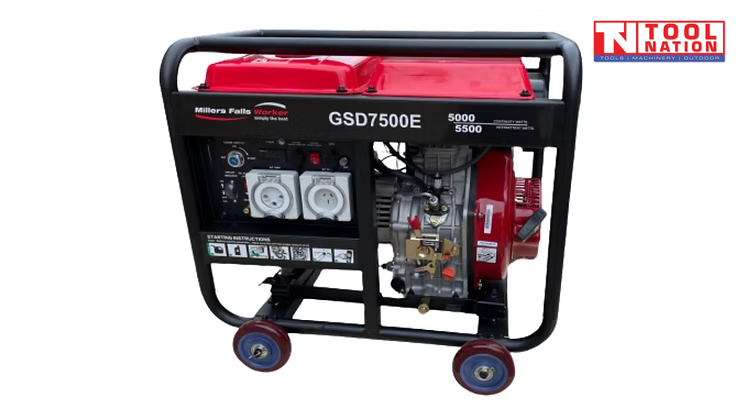

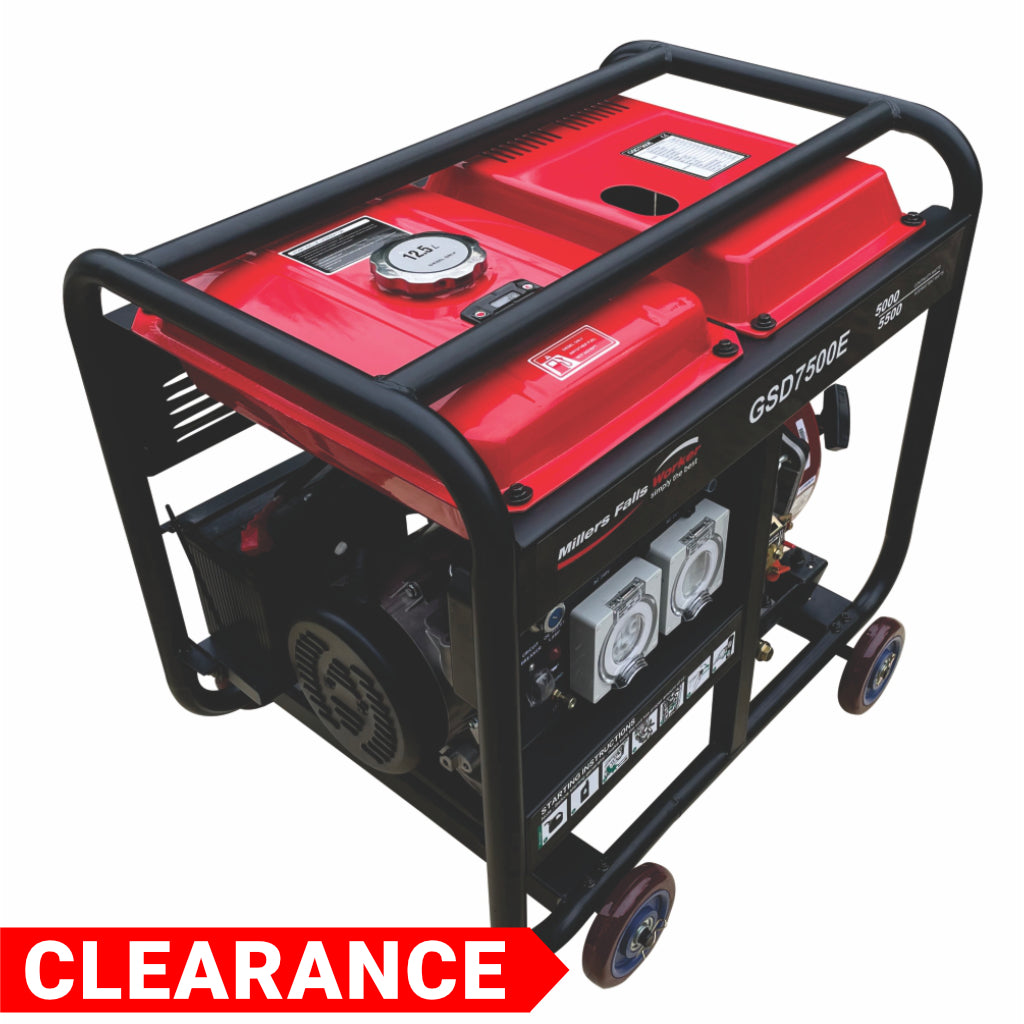

GSD7500E Diesel – Open Frame Generator

Superior Quality – Unprecedented Functionality – Exceptional Value

The GSD7500E delivers dependable, mid-range power for small to mid-size properties and a wide variety of tools and machinery. It’s built for versatility and site readiness, with safety-first electrics and easy starting.

ATS and Two-Wire Remote Start support let you integrate with an optional ATS box to auto-start during mains outages and stop on restoration, or trigger charging for off-grid batteries via a controller—hands-free reliability when you need it most.

Supplied IP66 outlets include 1 × 32 A / 240 V and 1 × 15 A / 240 V, plus a matching 32 A IP66 plug. An integrated RCD (earth leakage safety switch) boosts protection for construction and mining sites. A 12 V DC @ 8 A output is included for battery charging.

Features
  • 12-Volt DC circuit
  • 15 A 240 V IP66 socket
  • 32 A 240 V IP66 plug (supplied)
  • 32 A 240 V IP66 socket
  • ATS auto transfer switch connection
  • AVR automatic voltage regulator
  • Digital hour, hertz & volt meter
  • Heavy-duty copper alternator
  • Electric start
  • Low noise emission
  • Never-flat wheels
  • Oil alert light
  • RCD safety switch
  • Two-wire remote start
Specifications
Model Number GSD7500E AMPS 20.8
Volts 240 Frequency 50 Hz
Engine Displacement 418 cc THD < 8%
Max Power (kVA) 6.785 Power Factor 0.8
Rated Power (kVA) 6.25 Phase Single
Max Power (kW) 5.5 RPM 3000
Rated Power (kW) 5.0 Fuel Capacity 18 L
Noise (dBA) 82 Run Time (50%–100% load) 9.0 – 6.5 hrs
Dimensions (L × W × H / cm) 94 × 58 × 89 Weight 113 kg
