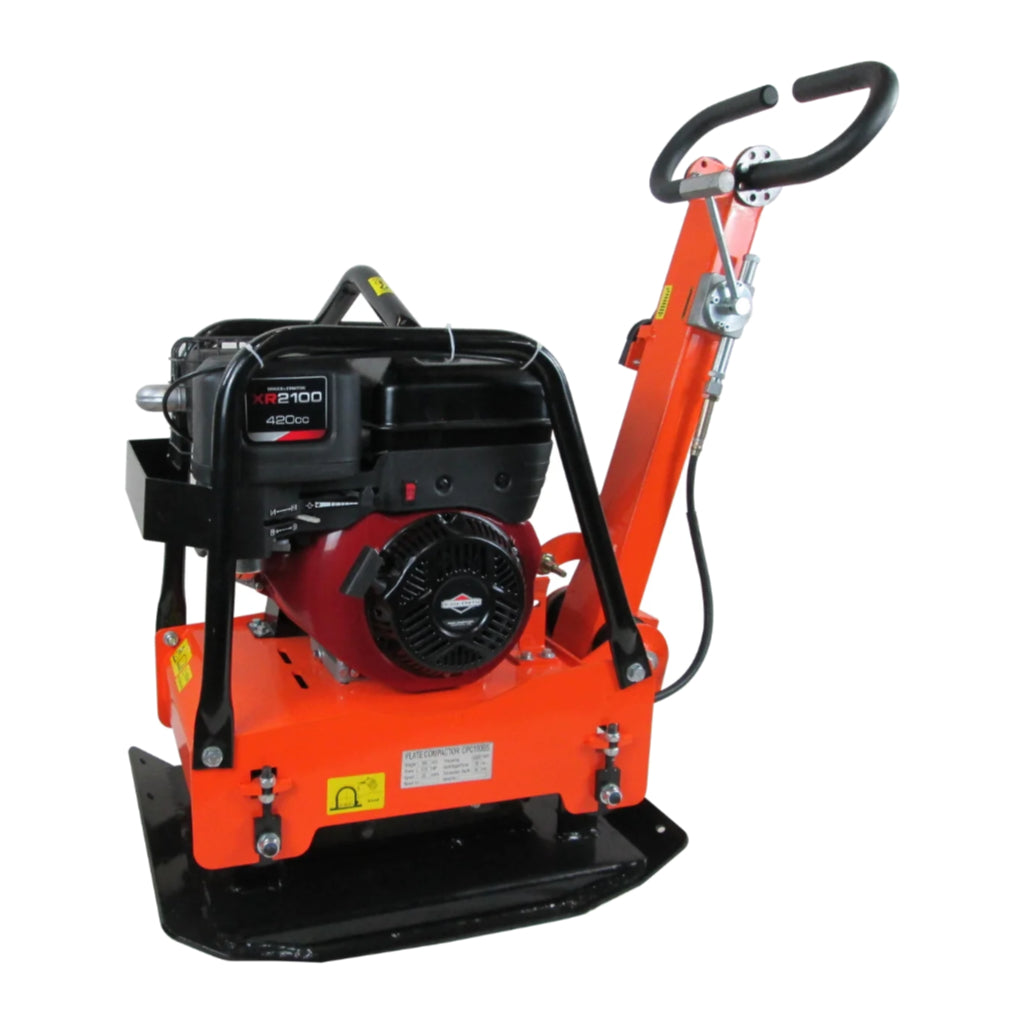

Compact Plate 180k Powered By Briggs and Stratton

ATXCPC160BS

Vendor: Millers Falls

$2,599.00
$2,599.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.
View full details

This Plate Compactor is powered by a reliable 13.5HP 4-stroke Briggs & Stratton engine. Ideal for compacting sand, gravel, mixed soils, etc. in narrow trenches, along foundations, walls and abutments, even brick paving compaction (using rubber mat, not supplied).

Constructed using industrial grade steel, this quality 4 Stroke Petrol Vibrating Plate Compactor is designed for reliability, durability, comfort, safety, versatility, and ease of use.



FUNCTION

With a compaction depth up to 450mm this mechanically reliable compactor is ideal for Sewer trenches, general road-building projects, compacting foundations and backfills and all standard jobs requiring a heavy duty 180 kg plate compactor.

SAFETY

Wrap around protection cage protects the machine from accidental job-site damage. The large size engine frame gives outstanding protection against damage. The V-belt drive is fully enclosed for better safety and trouble free use.

SUPERIOR FUNCTIONALITY

Forward and backward compacting operation is easily obtainable via the simple forward and reverse control. Purposefully designed square shaped bed and handles enabling changing direction with ease. Curved edges for easy access into corners during compaction.

EASY CLEANING

  • Foldable handle making storage and transportation effortless.
  • Built-in Lifting Hook allowing loading and unloading with lifting device.
  • Supplied with wheel kit for ease for transportation.

COMFORTABLE OPERATION

Heavy duty industrial throttle control is available as standard. Heavy duty shock mounts reduce vibration to the upper engine and handle.

Features and specifications:

  • Engine brand: Briggs & Stratton
  • Engine type: 4 stroke, single cylinder, OHV
  • Engine cooling: Air
  • Engine power: 13.5hp
  • Engine start: Manual (recoil)
  • Plate size: 70cm x 50cm
  • Maximum centrifugal force: 30kn
  • Compaction depth: 45cm
  • Vibration Frequency: 4200vpm
  • Travel speed: 25cm/s
  • Net Weight: 180kg
  • Easy operation and less shake
  • Package dimensions: 83cm x 53cm x 105cm
  • Package weight: 191kg
  • 12 months warranty
  • Colour may vary
