WORKSHOP 270 MIG Welder

UMGKUM270

Vendor: UNIMIG

$3,710.00
$3,710.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.
View full details

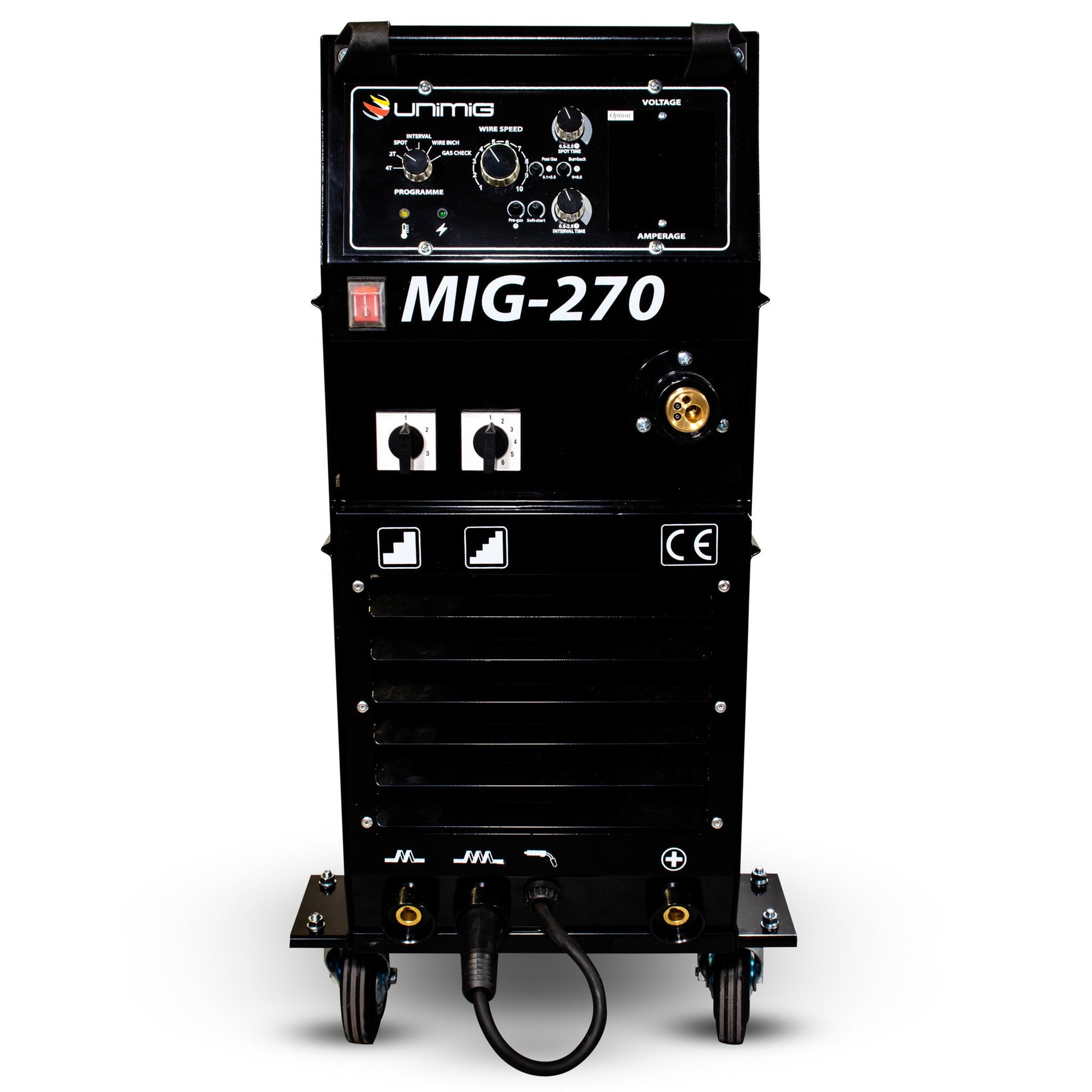

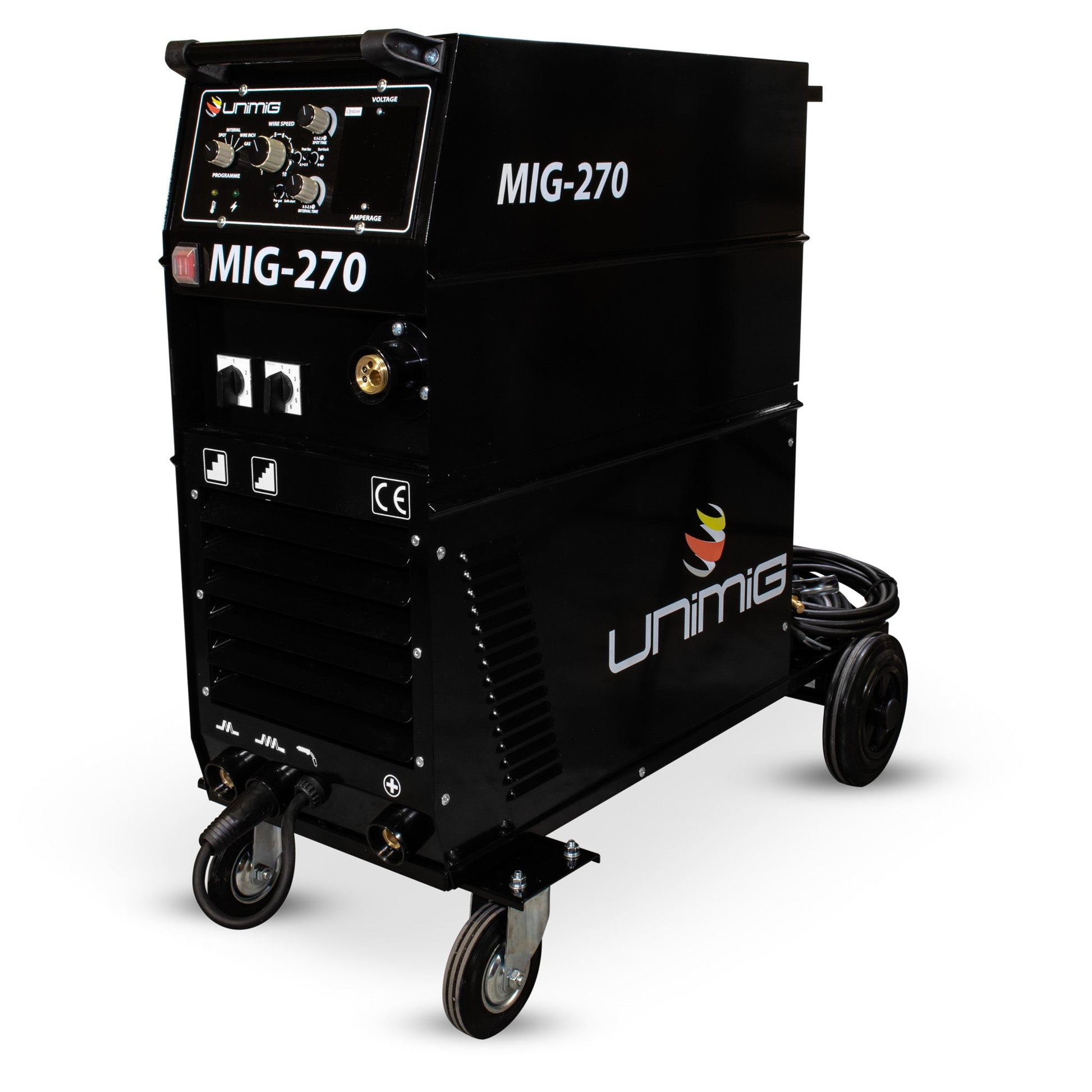

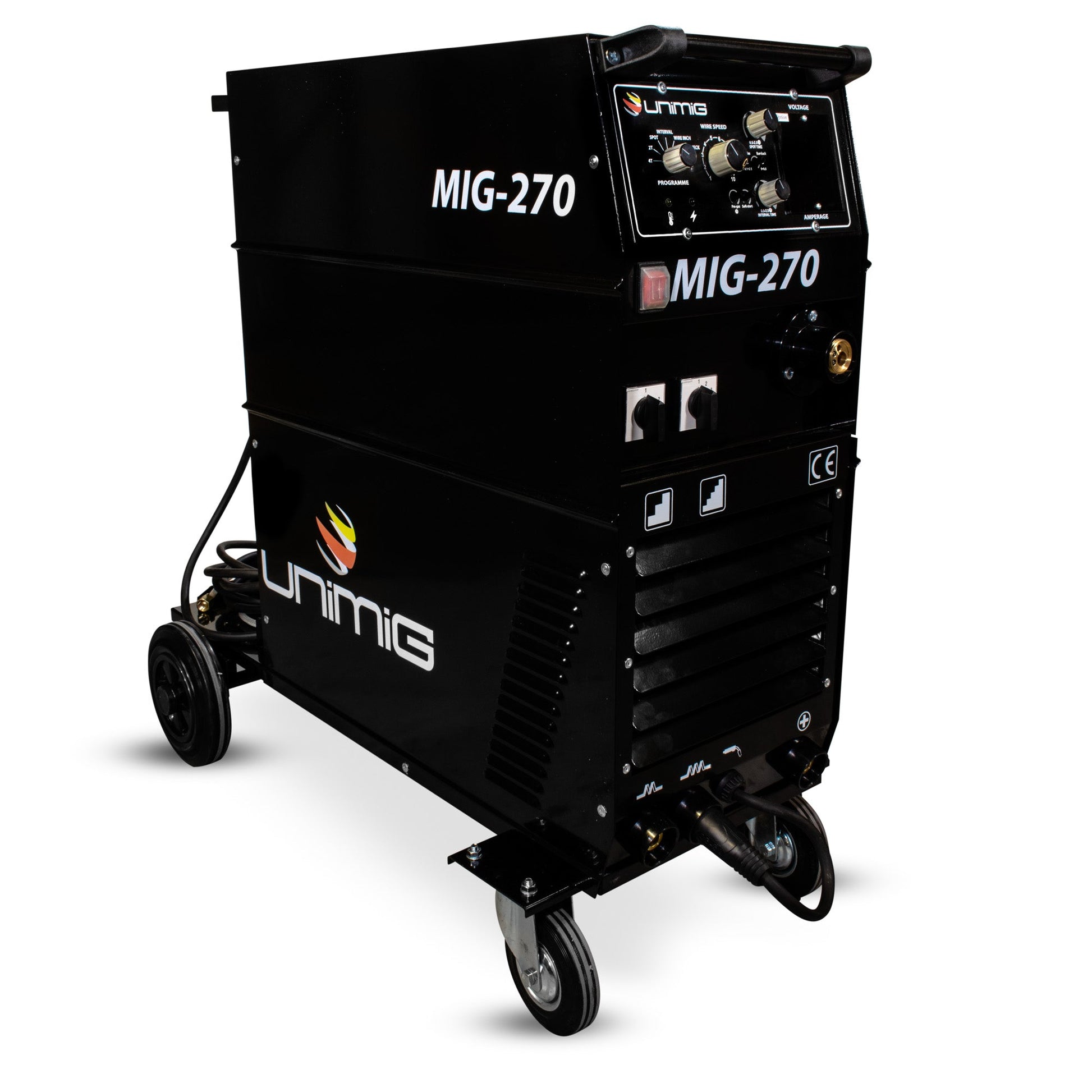

The WORKSHOP 270 Compact MIG Welder combines immense power with ultra-smooth arc characteristics. It has been designed for users who need a welder to do medium to heavy fabrication, as well as rural applications. It features 21 position switching, giving you the freedom to precisely dial in your welding settings, and a four geared roller drive unit for consistent smooth wire feeding. The high-quality copper-wound transformer with large cooling fans and motors maximises cooling and machine reliability.


BUILT TO LAST

Designed and manufactured with the best quality components for increased durability and reliability. Workshop series machines feature Copper wound transformer and smoothing choke, large 250mm cooling fan with enclosed motor, to maximise cooling for high duty cycle operation.

VOLTAGE STEPS

21 position switching, allows precise setting in small increments of welding voltage so the operator can achieve the correct weld penetration.



FOUR GEARED WIRE DRIVE

This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.



Product No: KUM270

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

11.0

RATED OUTPUT

30-250A

PROTECTION CLASS

IP21

INSULATION CLASS

I

MINIMUM GENERATOR (kVA)

13.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Aluminium, Stainless Steel

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

70% @ 250A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg/15kg

MIG WELDING THICKNESS RANGE

1-16mm

DRIVE ROLLER SIZE

40/32 (x2)



SIZE & WEIGHT

DIMENSIONS (mm)

870 x 940 x 460mm

WEIGHT (kg)

116kg



MACHINE FEATURES

WIRE DRIVE

Four Geared

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
