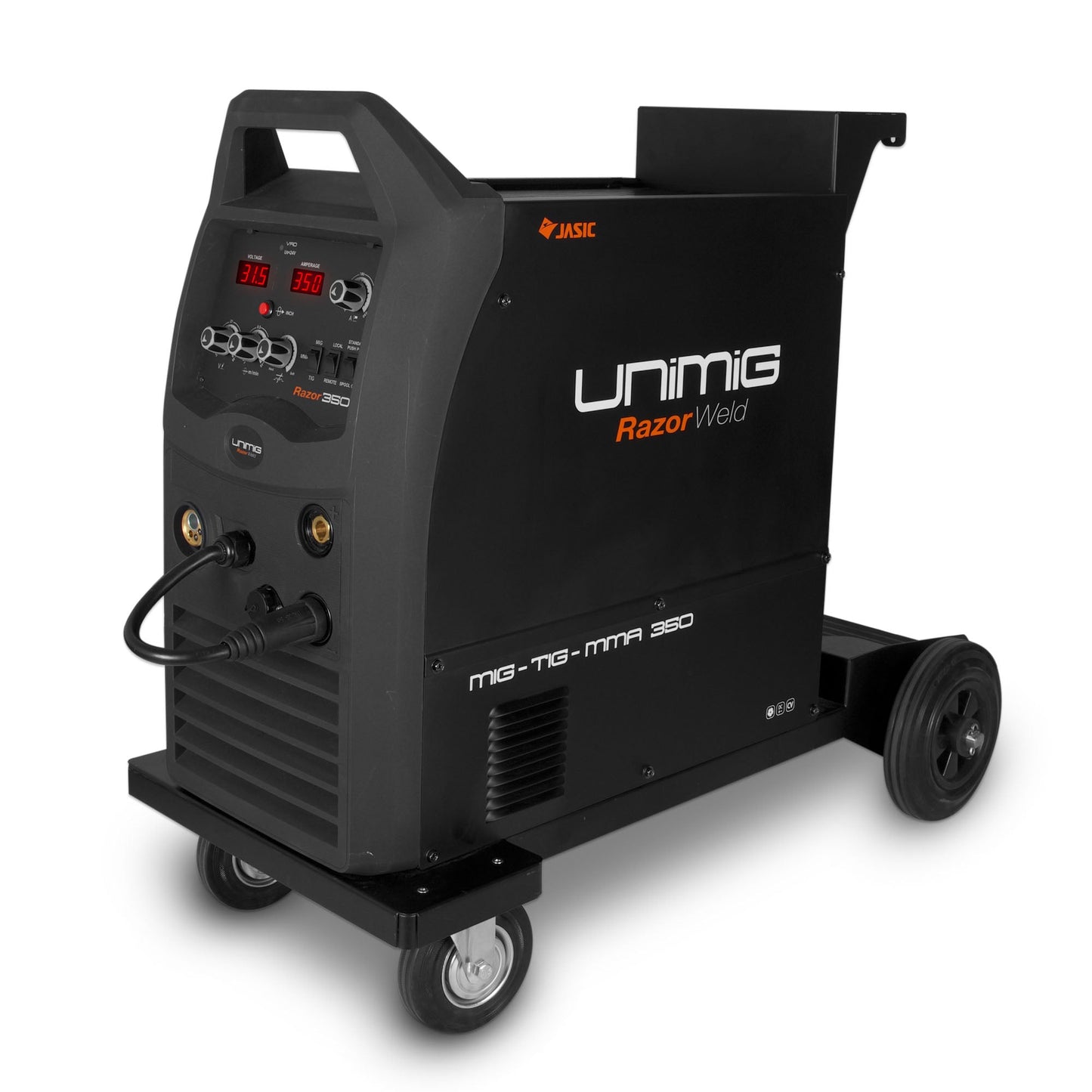

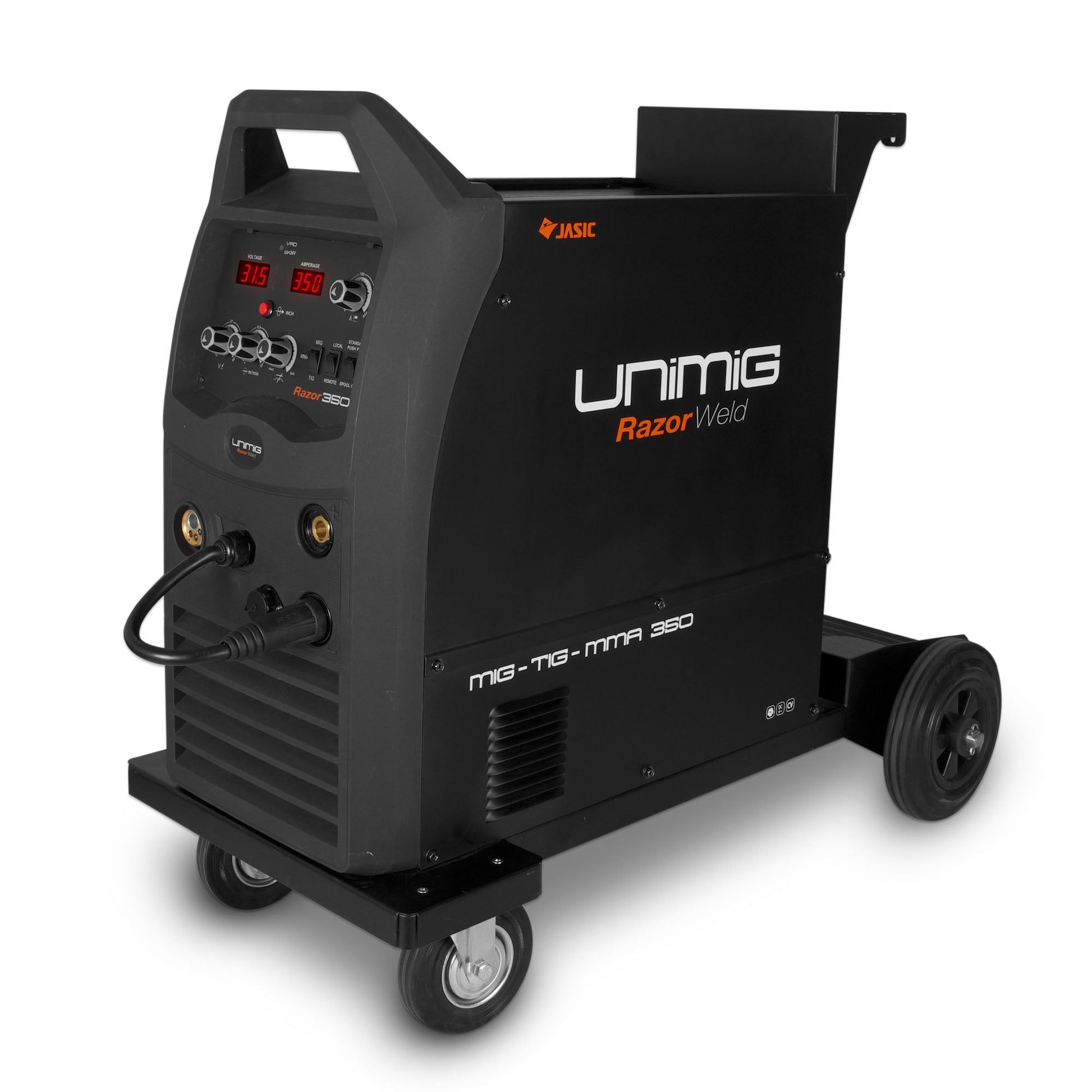

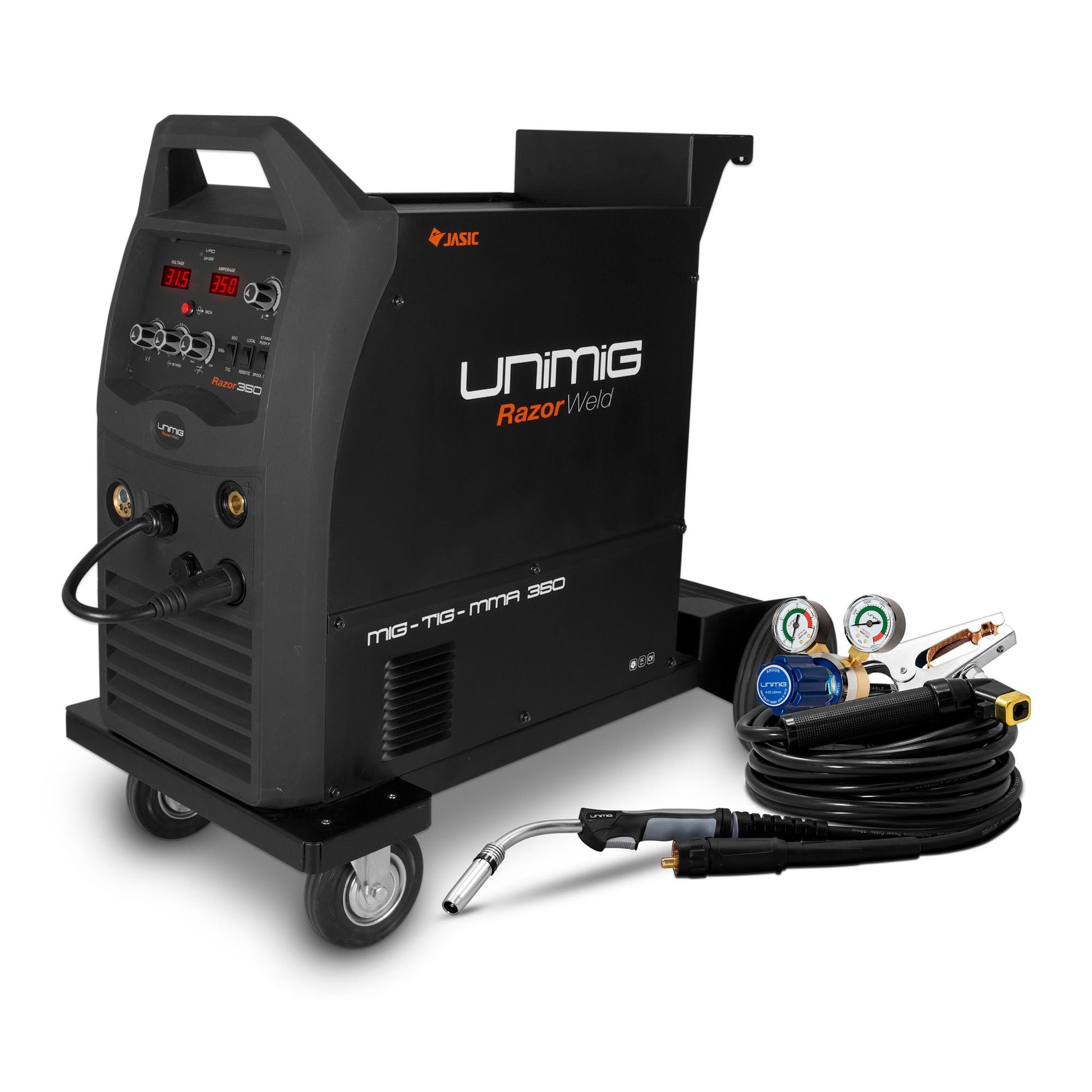

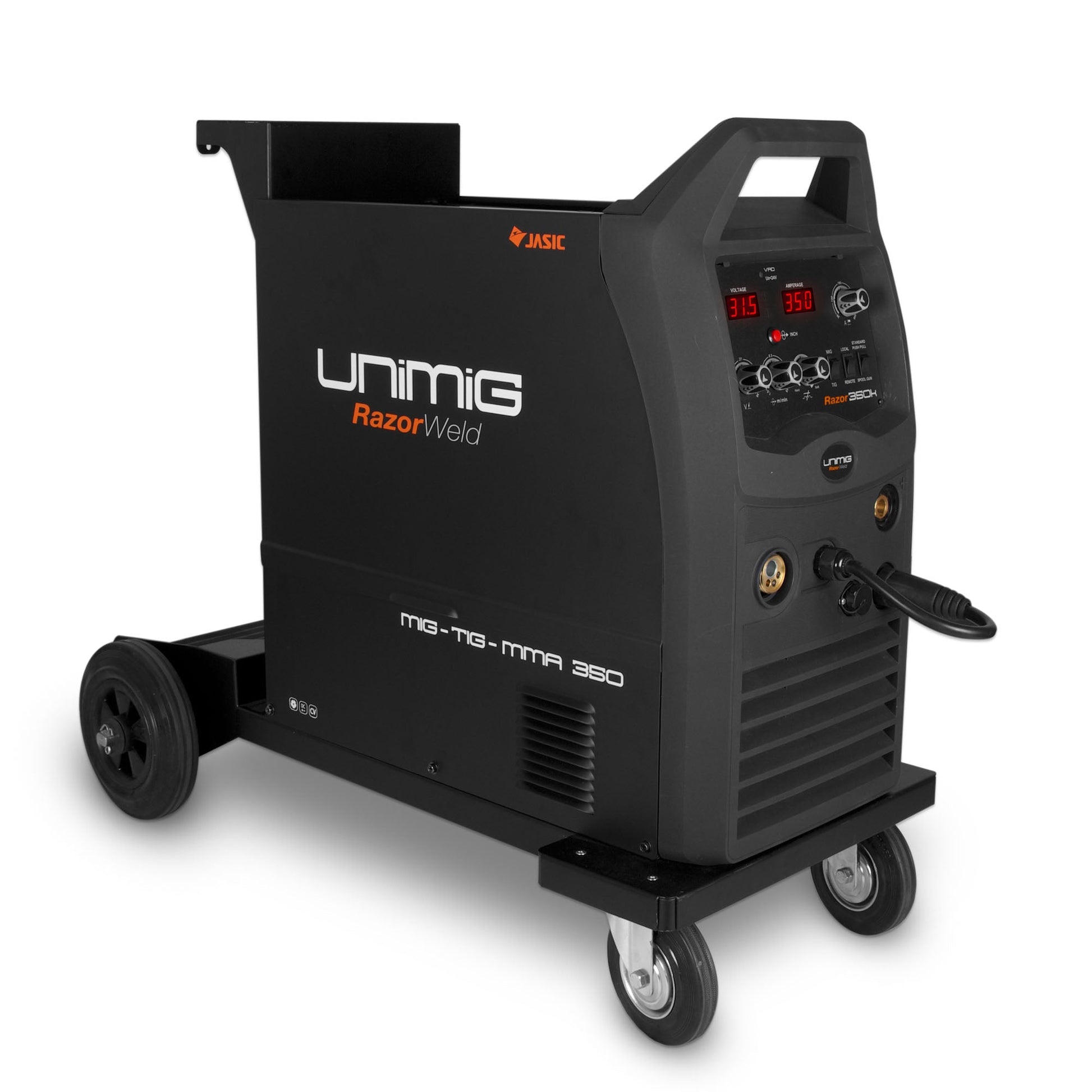

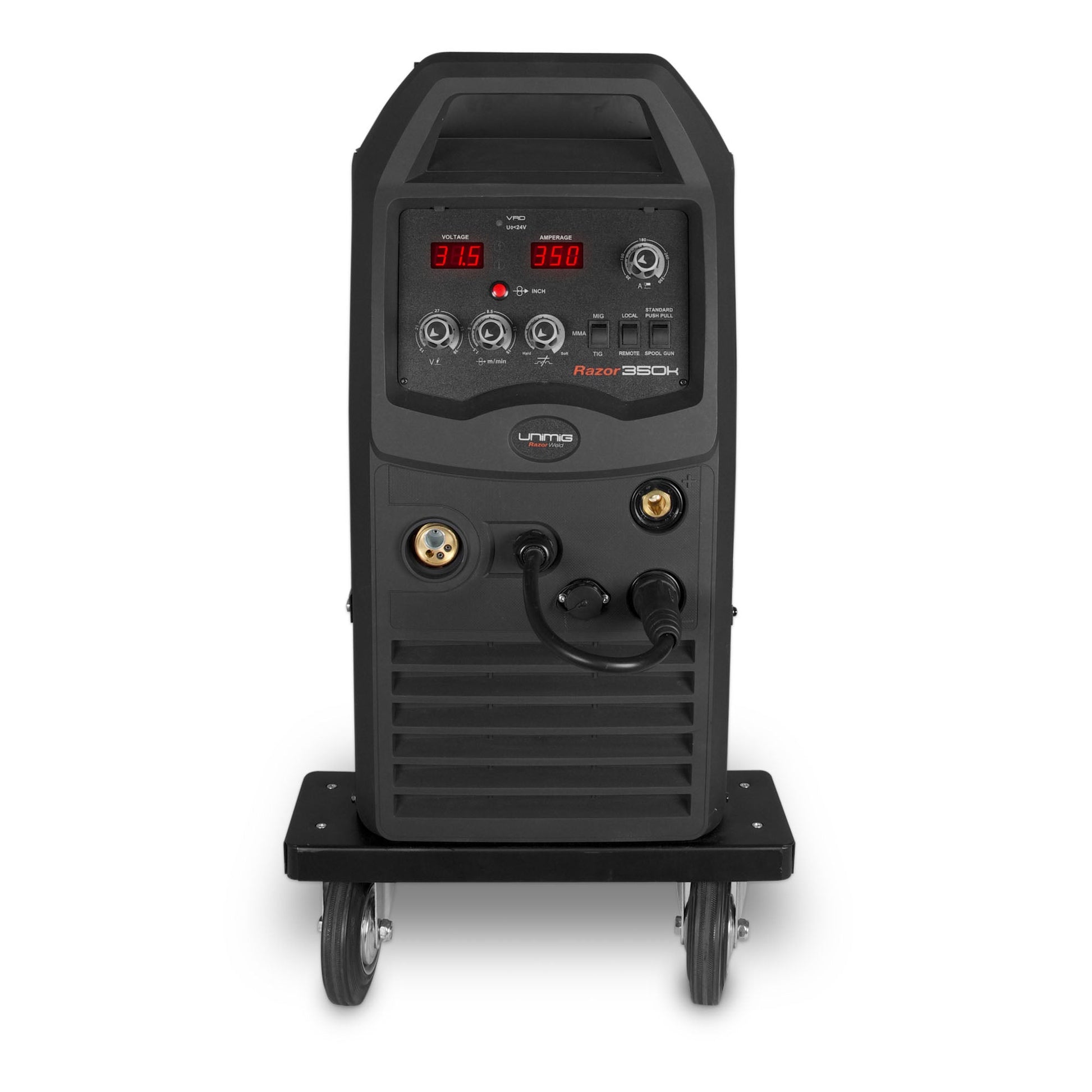

RAZOR 350 COMPACT MIG/TIG/STICK Welder

UMGKUMJR350K-SG

Vendor: UNIMIG

$3,334.00
$3,334.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.
View full details

The RAZOR™ 350 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 350 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.



MULTI PROCESS WELDING

Three-in-one. A multi-process welder lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.



SPOOL GUN READY

This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.



PUSH-PULL READY

Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.



HIGHEST QUALITY WELDS

Offering nothing but the best, this machine has been designed to offer the highest quality welds available from UNIMIG. With superior welding technology, no corners have been cut to make this machine the most powerful in its class.



FOUR GEARED WIRE DRIVE

This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.





Product No: KUMJR350K-SG

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

415V Three-Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

15.0

Ieff (A)

13.7

RATED OUTPUT

50A/16.5V - 350A/31.5V

NO LOAD VOLTAGE (V)

64

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.75

MINIMUM GENERATOR (kVA)

20.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

50-350A

MIG DUTY CYCLE @ 40°C

40% @ 350A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-16mm

DRIVE ROLLER SIZE

30/22 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

20-350A

TIG DUTY CYCLE @ 40°C

40% @ 350A

TIG WELDING THICKNESS RANGE

2-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-350A

STICK DUTY CYCLE @ 40°C

40% @ 350A

STICK ELECTRODE RANGE

2.5-6.0mm

STICK WELDING THICKNESS RANGE

2-16mm



SIZE & WEIGHT

DIMENSIONS (mm)

900x400x670mm

WEIGHT (kg)

60kg



MACHINE FEATURES

WIRE DRIVE

4 Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

PUSH / PULL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
