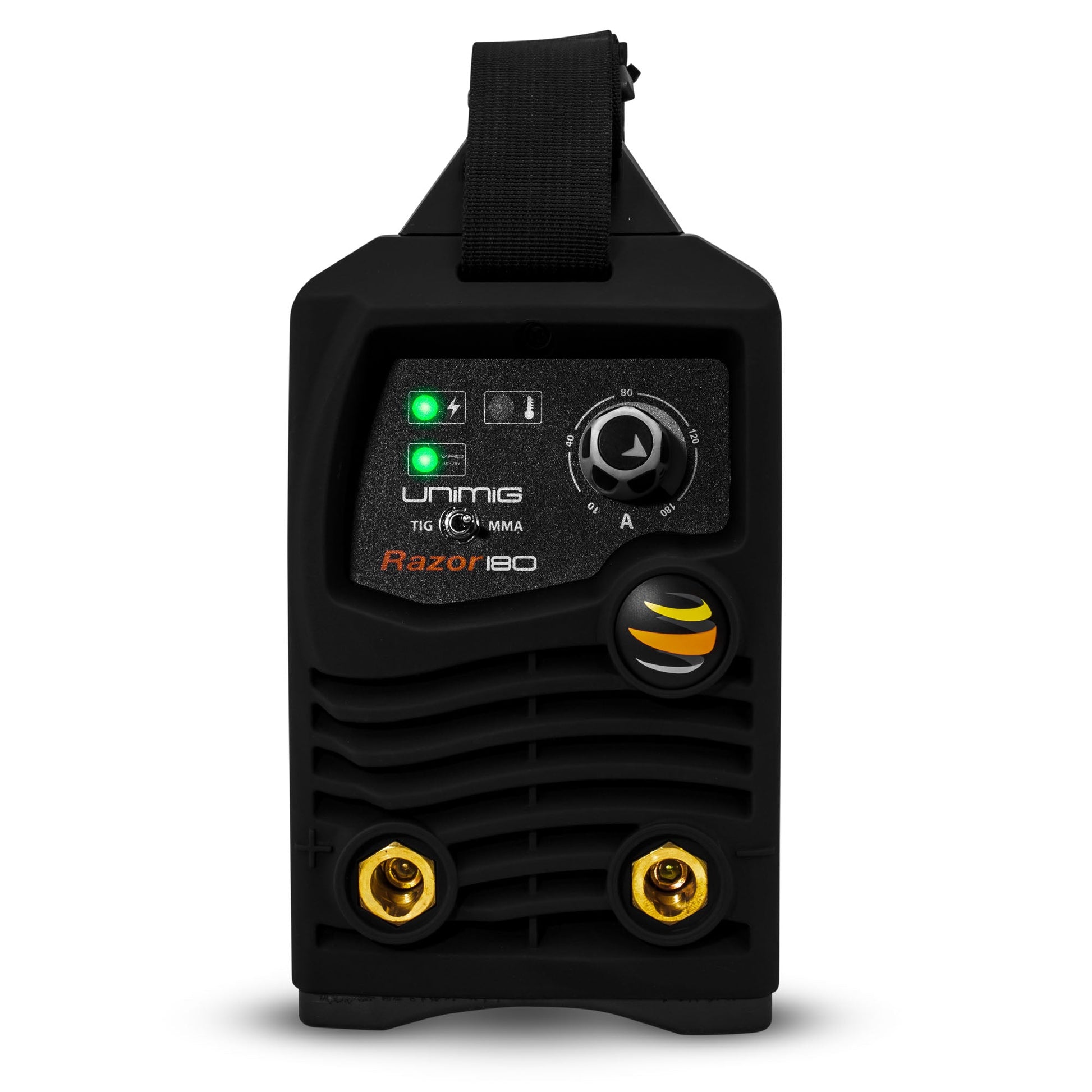

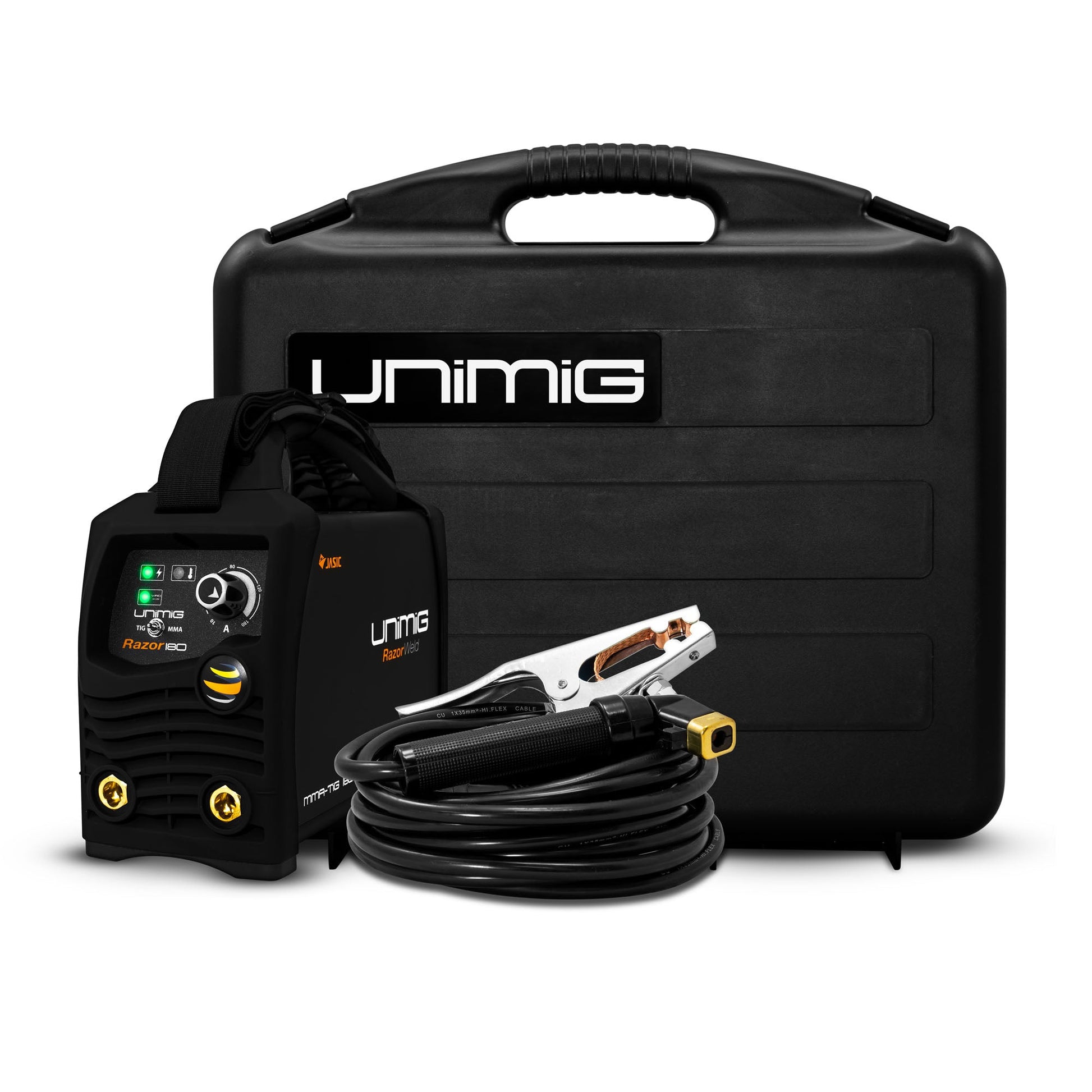

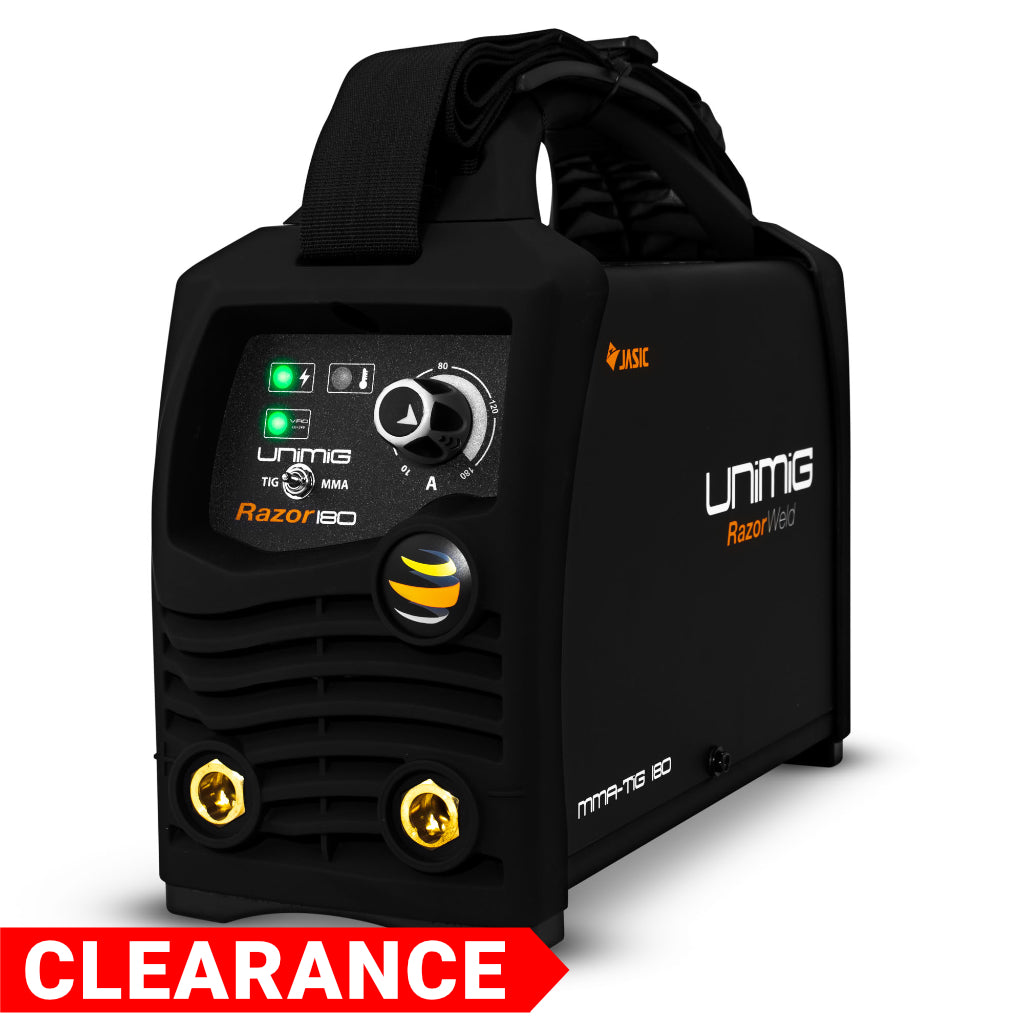

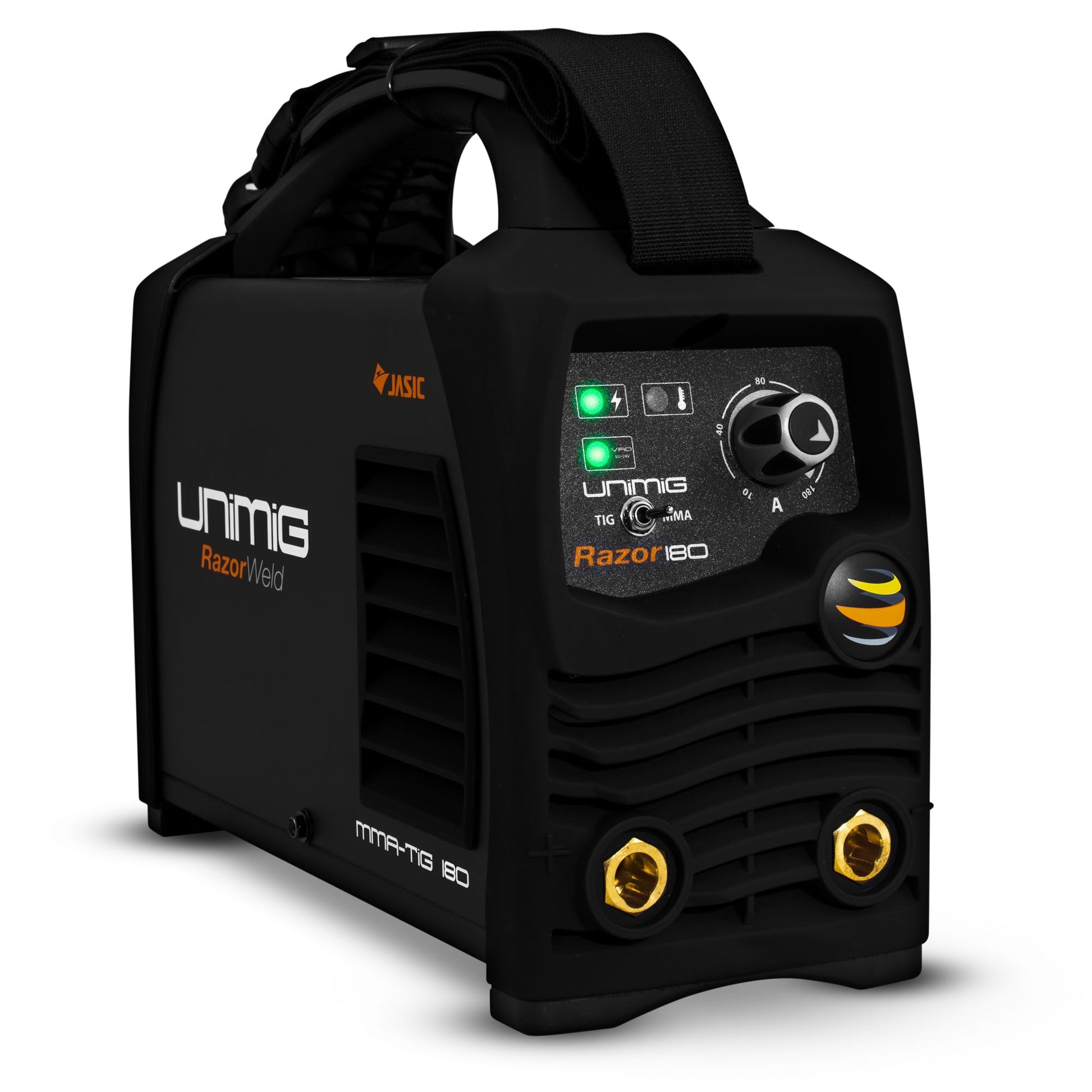

RAZOR ARC 180 STICK Welder

SKU:UMGKUMJRRW180CA

Vendor: UNIMIG

Regular price $272.00
Regular price $445.00 Sale price $272.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.

View full details

The RAZOR™ ARC 180 is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is designed to be taken between the workshop and worksites. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.



DC LIFT ARC TIG

Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.



KEYABLE VRD SWITCH

A Voltage Reduction Device can be turned on and off with the supplied key to suit your application. If you’re running electrodes that are hard to start, the VRD can be turned off to help with striking an arc.





Product No: KUMJRRW180CA

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

7.2

Ieff (A)

14.0

RATED OUTPUT

10-180A

NO LOAD VOLTAGE (V)

78

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Copper, Cast Iron

WARRANTY (Years)

3

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-180A

TIG DUTY CYCLE @ 40°C

20% @ 180A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-180A

STICK DUTY CYCLE @ 40°C

20% @ 180A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

2-12mm



SIZE & WEIGHT

DIMENSIONS (mm)

313x250x130mm

WEIGHT (kg)

4.7kg



MACHINE FEATURES

VRD

Yes (Keyable)

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
