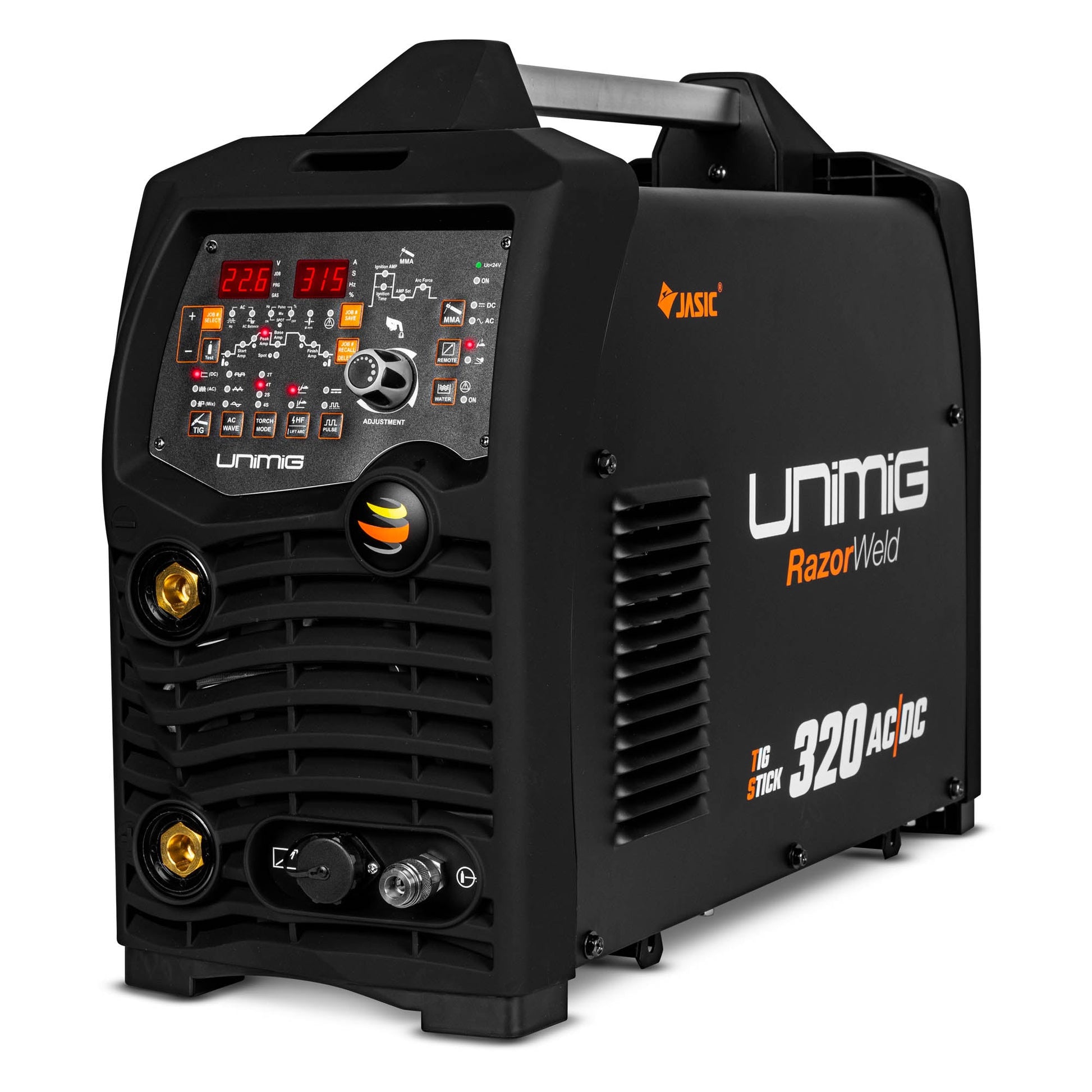

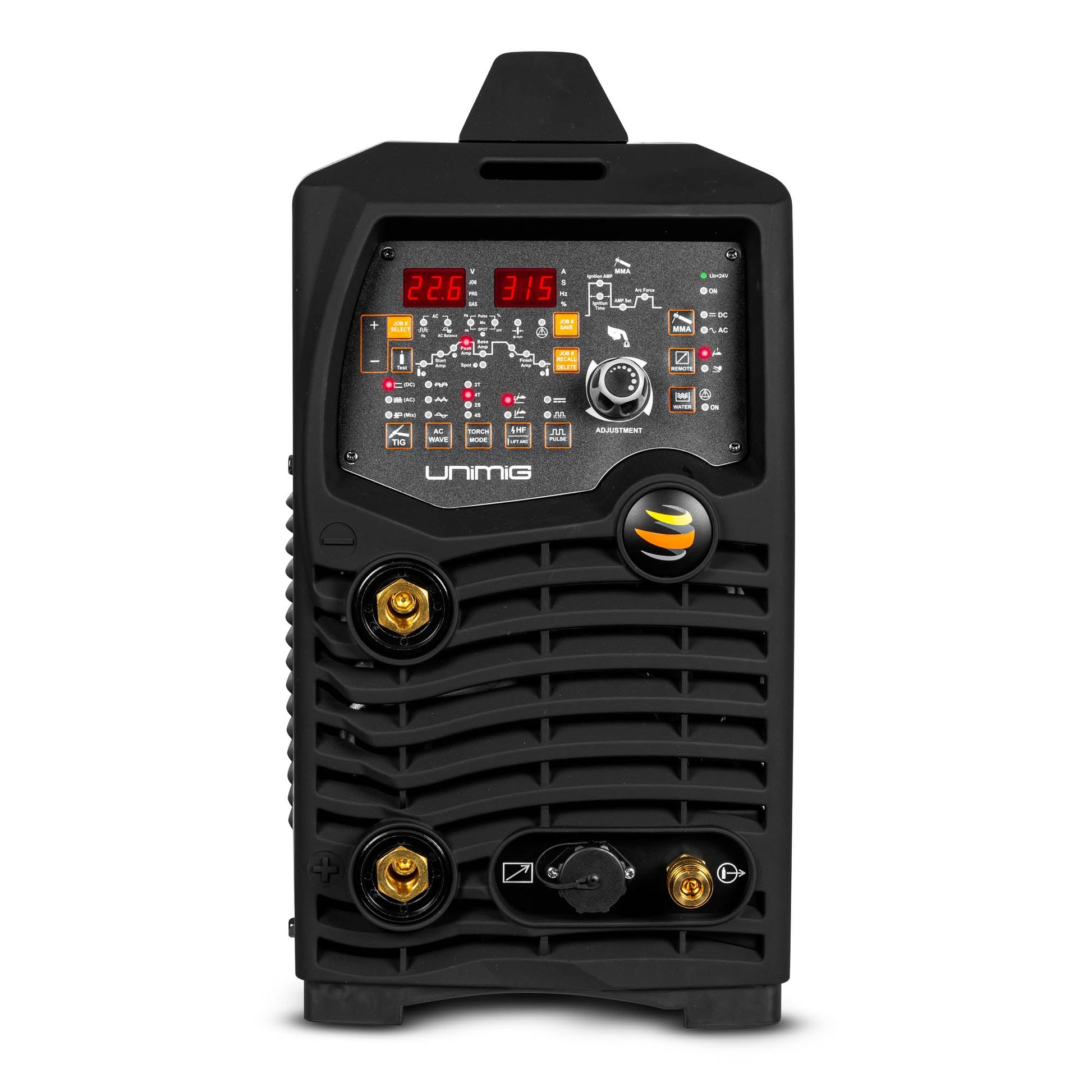

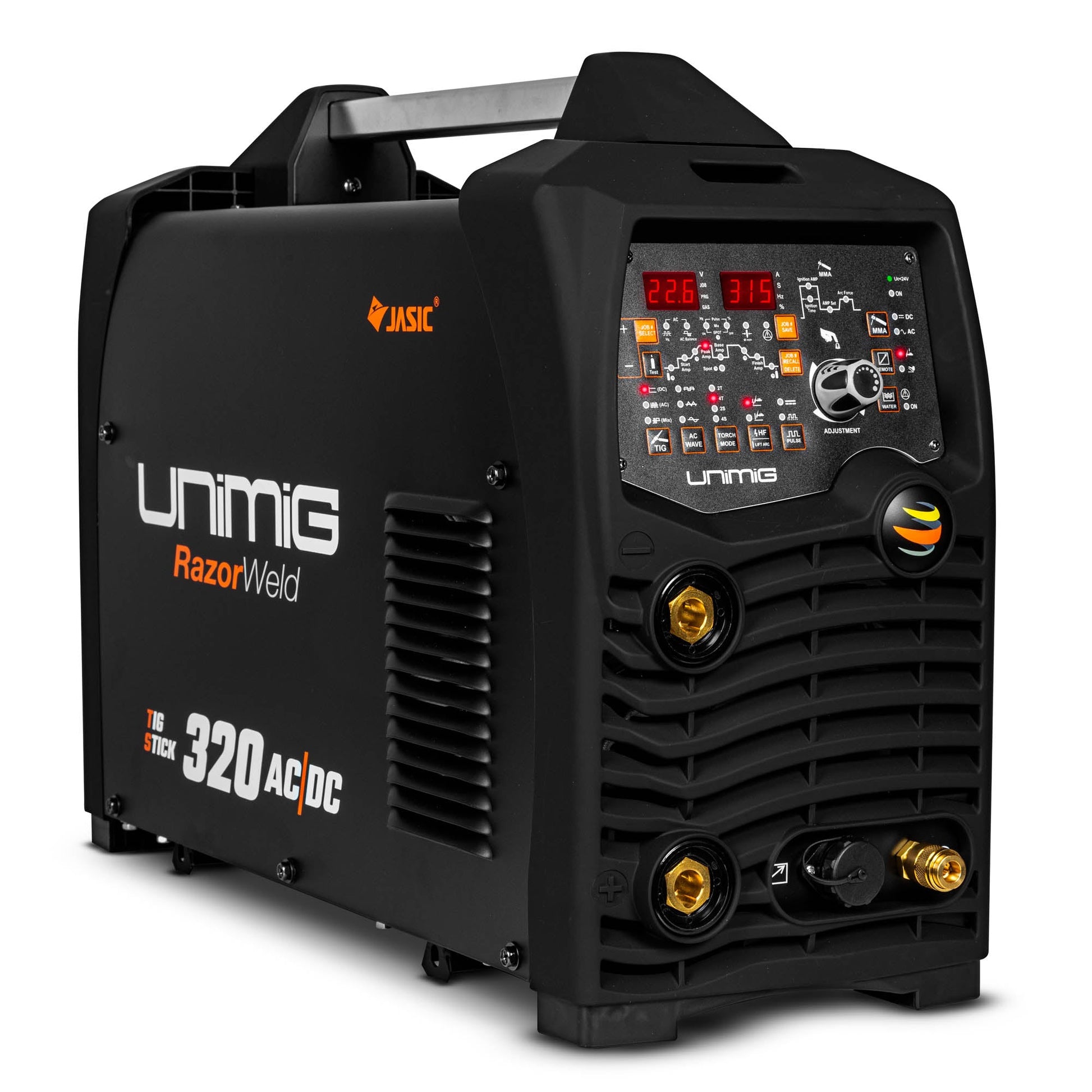

RAZOR 320 AC/DC TIG/STICK Welder

SKU:UMGKUMJRRW320ACDC

Vendor: UNIMIG

Regular price $3,942.00
Regular price Sale price $3,942.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.

View full details

The RAZOR‚Ñ¢ 320 AC/DC gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This Three-Phase machine features Square, Trapezoidal and Sine AC output waveforms, as well as MIX ARC AC/DC functions.

The RAZOR‚Ñ¢ 320 AC/DC is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminium, stainless steel fabrication, marine and industrial engineering welding situations.

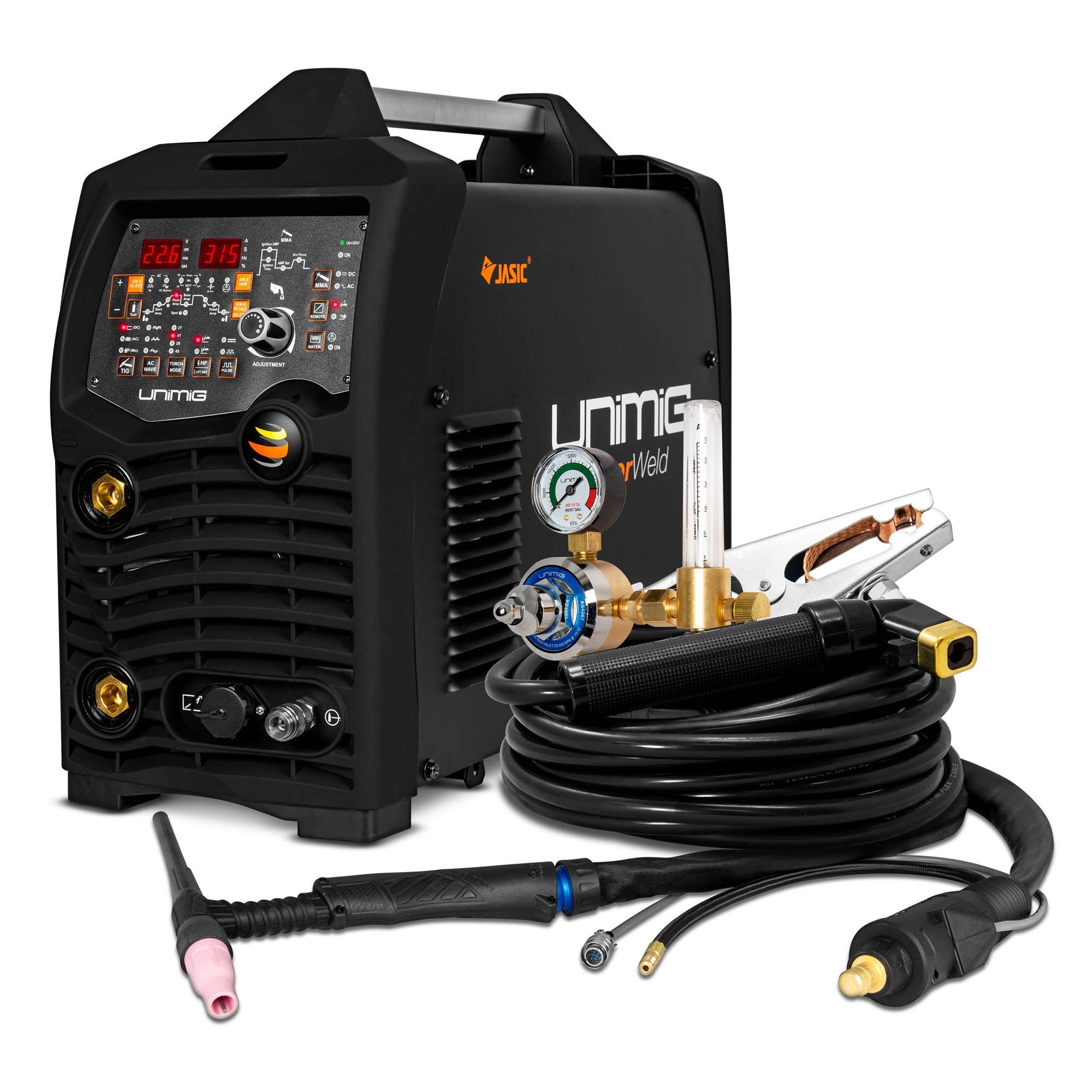

The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZOR‚Ñ¢ 320 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control and Water Cooler can also be plugged into the machine for even more versatility and power.

AC TIG WELDING

Featuring multiple AC output waveforms of Square, Trapezoidal and Sine, combined with AC Balance and AC Frequency control you have the ultimate tool in AC TIG Welding mode to suit all your AC TIG welding requirements.



DC TIG WELDING

Latest 43KHz inverter frequency technology provides the ultimate in smooth and stable arc condition for DC TIG welding mode, coupled with the Digital Weld Sequence Program provides complete and professional DC TIG Welding function.



MIX ARC AC/DC TIG WELDING

This function of MIX AC/DC makes it possible to modulate the welding current, alternating a period of TIG AC with a period of TIG DC-. This means that the e?ciency of AC TIG welding can be combined with the high penetration of DC TIG welding, obtaining higher welding speeds and establishing the weld puddle quicker on cold work-pieces. The operator adjustable parameter is the percentage of AC waveform compared to DC- waveform over the entire period, which can be varied from 5~95%.



STICK WELDING

Full attention is given to MMA welding providing both DC and AC output modes. Ignition AMP and Ignition Time provide for an operator-controlled Hot Start of the weld by applying extra current to the set weld current over a preset time. Arc force allows adjustment of the arc transfer from a digging action through to a softer layering effect. The complete and professional MMA function allows you to set the ideal arc condition no matter what the electrode and welding situation.

WELD SEQUENCE CONTROL

The Digital Weld Sequence Program and intelligent MCU software provide full TIG functionality in AC, DC and MIX modes. Adjustable pre-sets include Pre-Gas time, Start Current, Up Slope, Down Slope, Finish Current level and Post-Gas time. Digital Pulse parameter presets include Peak & Base current; Pulse Frequency & Pulse Width. HF and Lift Arc Ignition.

TORCH MODE

Multiple torch trigger selections of 2T, 2S, 4T, 4S provide complete ?exibility and operator control over the weld sequence from start to ?nish.



FOOT CONTROL

This machine supports the connection of an external foot control for extra versatility and convenience while welding. This allows you to adjust your amperage hands-free to avoid disrupting your torch movement.



JOB MEMORY

The job memory function allows you to enter and store weld parameter settings under job numbers. The job number can be recalled to reveal and use the weld parameters stored, and weld parameters can be further adjusted and stored as required. A total of 50 Jobs can be memorised and stored for recall.



WATER COOLER COMPATIBLE

Activating the water cooler control allows for the water cooler to operate when welding current is available during welding and will switch off automatically after 5 minutes of no welding current.





Product No: KUMJRRW320ACDC

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

415V Three Phase

SUPPLY PLUG

No plug supplied (20 AMP Recommended)

RATED INPUT POWER (kVA)

9.0

Ieff (A)

10.0

RATED OUTPUT

5-315A

NO LOAD VOLTAGE (V)

9-73

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1, AS/NZ60974-10

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium

WARRANTY (Years)

3

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG & AC/DC Pulse

TIG WELDING CURRENT RANGE

5-315A

TIG DUTY CYCLE @ 40°C

30% @ 315A

TIG WELDING THICKNESS RANGE

1-16mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-270A

STICK DUTY CYCLE @ 40°C

30% @ 270A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-16mm

ARC FORCE

0-40



SIZE & WEIGHT

DIMENSIONS (mm)

566x223.5x405mm

WEIGHT (kg)

25.5kg



MACHINE FEATURES

VRD

Yes

FOOT CONTROL CONNECTION

UTJRFC-4

CRATER CURRENT CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
