RAZOR 500 SWF MIG/TIG/STICK Welder

UMGKUMJRRW500SWF

Vendor: UNIMIG

$5,643.00
$5,643.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.
View full details

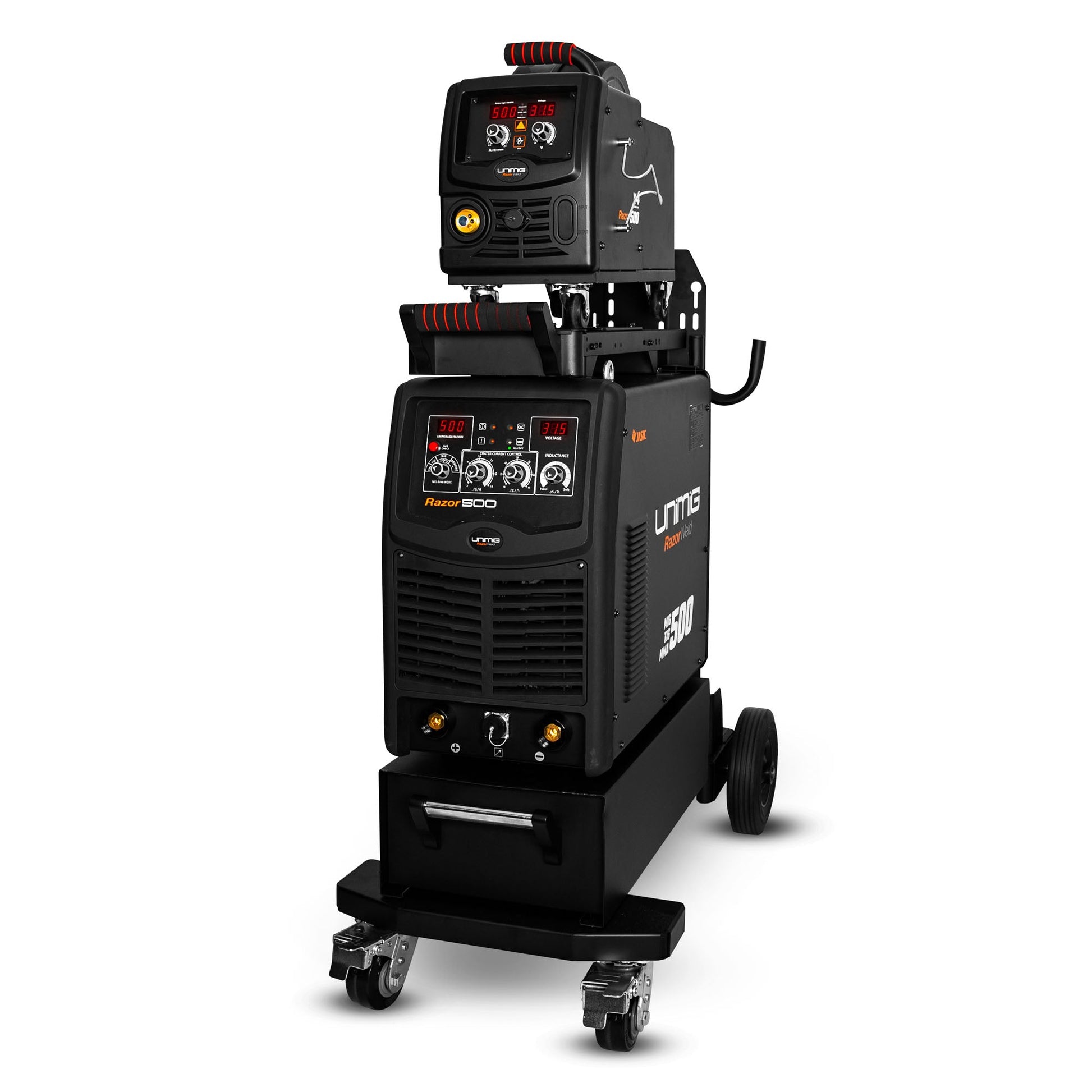

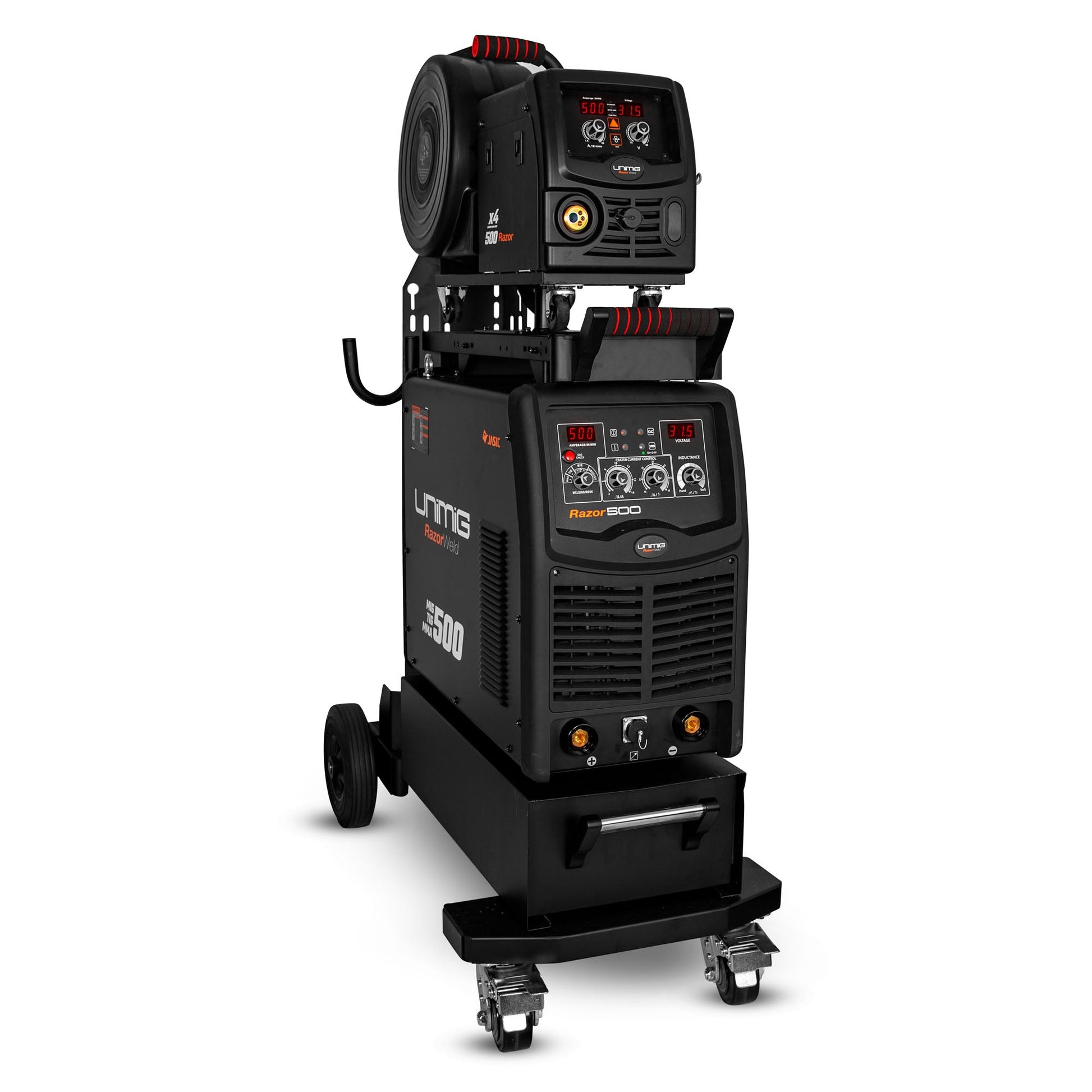

The RAZOR™ 500 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 500 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZOR™ SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from UNIMIG’s range.



SEPARATE WIRE FEEDER

This machine includes a Separate Wire Feeder unit with the added benefit of being able to remove the wire feeder from the power source up to a distance of 10m. This is perfect for workshops when moving a complete machine isn’t an option.



MULTI PROCESS WELDING

This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.



SPOOL GUN READY

This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.



PUSH-PULL READY

Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.



HIGHEST QUALITY WELDS

Offering nothing but the best, this machine has been designed to offer the highest quality welds available from UNIMIG. With superior welding technology, no corners have been cut to make this machine the most powerful in its class.



FOUR GEARED WIRE DRIVE

This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.





Product No: KUMJRRW500SWF

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

415V Three-Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

25.3

Ieff (A)

24.3

RATED OUTPUT

50A/17V - 500A/39.0V

NO LOAD VOLTAGE (V)

85

PROTECTION CLASS

IP23

INSULATION CLASS

F

POWER FACTOR

0.93

MINIMUM GENERATOR (kVA)

26.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

50-500A

MIG DUTY CYCLE @ 40°C

60% @ 500A

MIG WIRE SIZE RANGE

0.6-1.6mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-30mm

DRIVE ROLLER SIZE

30/10 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

20-500A
TIG DUTY CYCLE @ 40°C

60% @ 500A

TIG WELDING THICKNESS RANGE

2-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-500A

STICK DUTY CYCLE @ 40°C

60% @ 500A

STICK ELECTRODE RANGE

2.5-6.0mm

STICK WELDING THICKNESS RANGE

2-20mm



SIZE & WEIGHT

DIMENSIONS (mm)

595x280x440mm

WEIGHT (kg)

43kg

SWF DIMENSIONS (mm)

630x235x420mm

SWF WEIGHT (kg)

14kg

SWF INTERLOCKING CABLE LENGTH (m)

10m



MACHINE FEATURES

WIRE DRIVE

Seperate 4 Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

PUSH / PULL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Synergic

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

CRATER CURRENT CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

AIR ARC GOUGING

Yes
