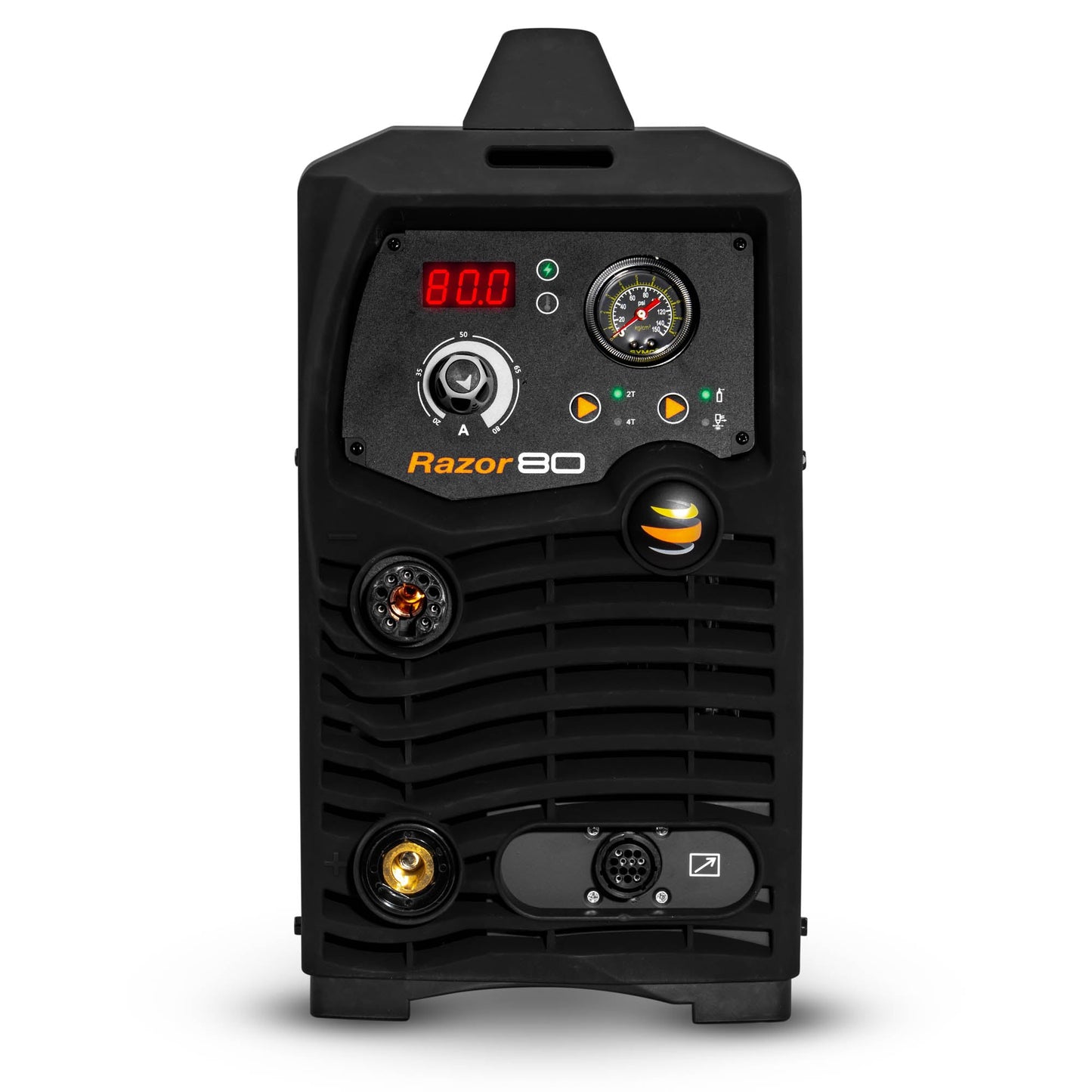

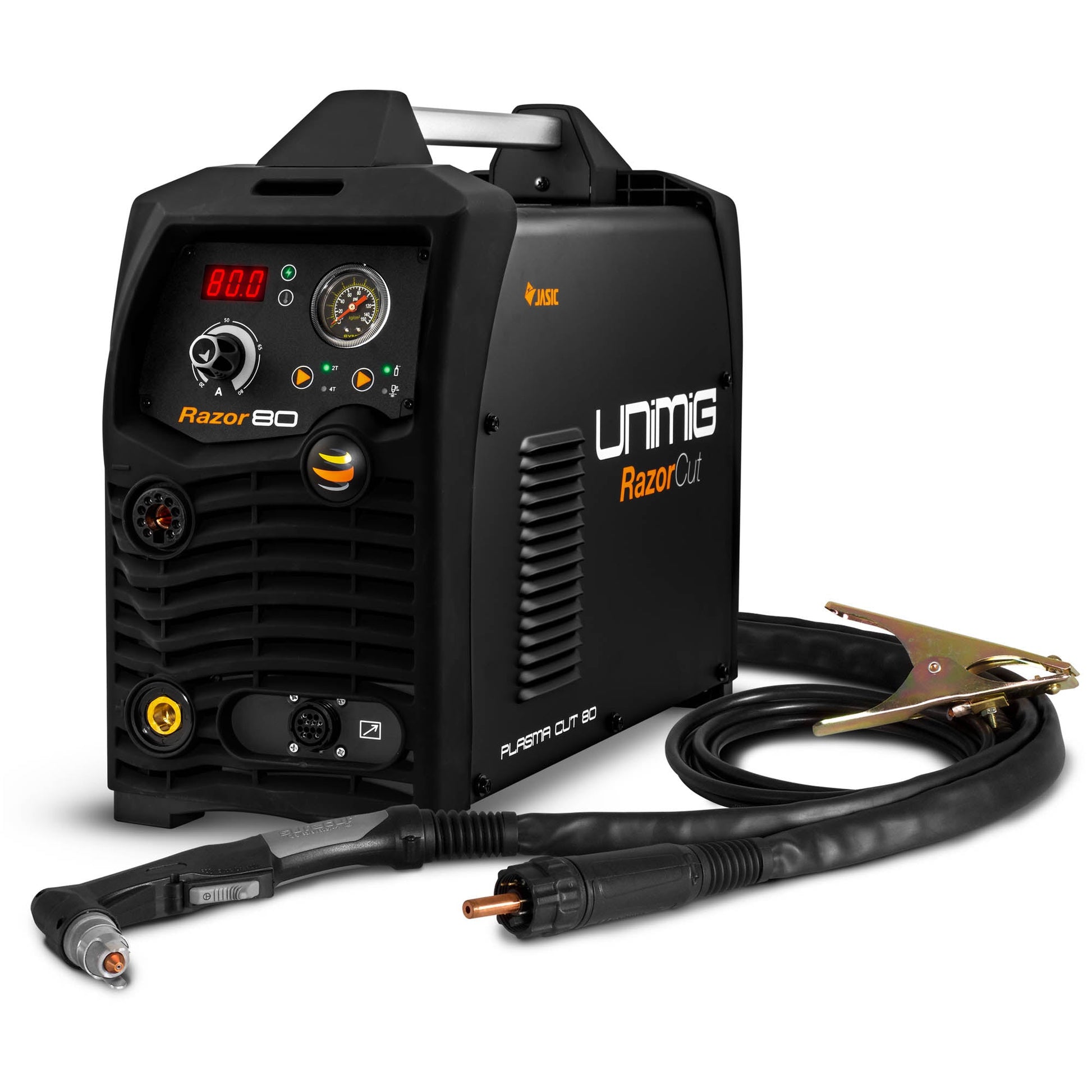

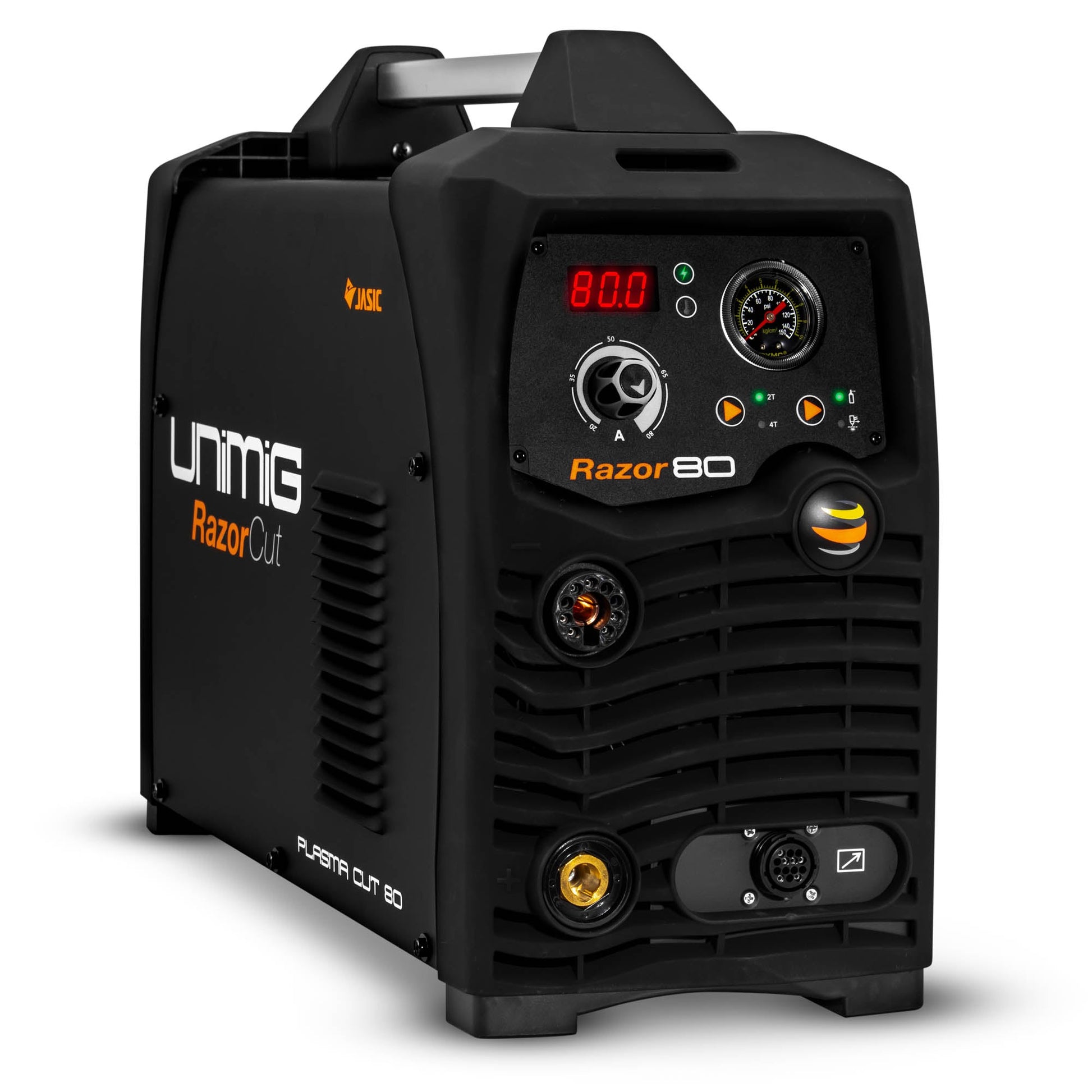

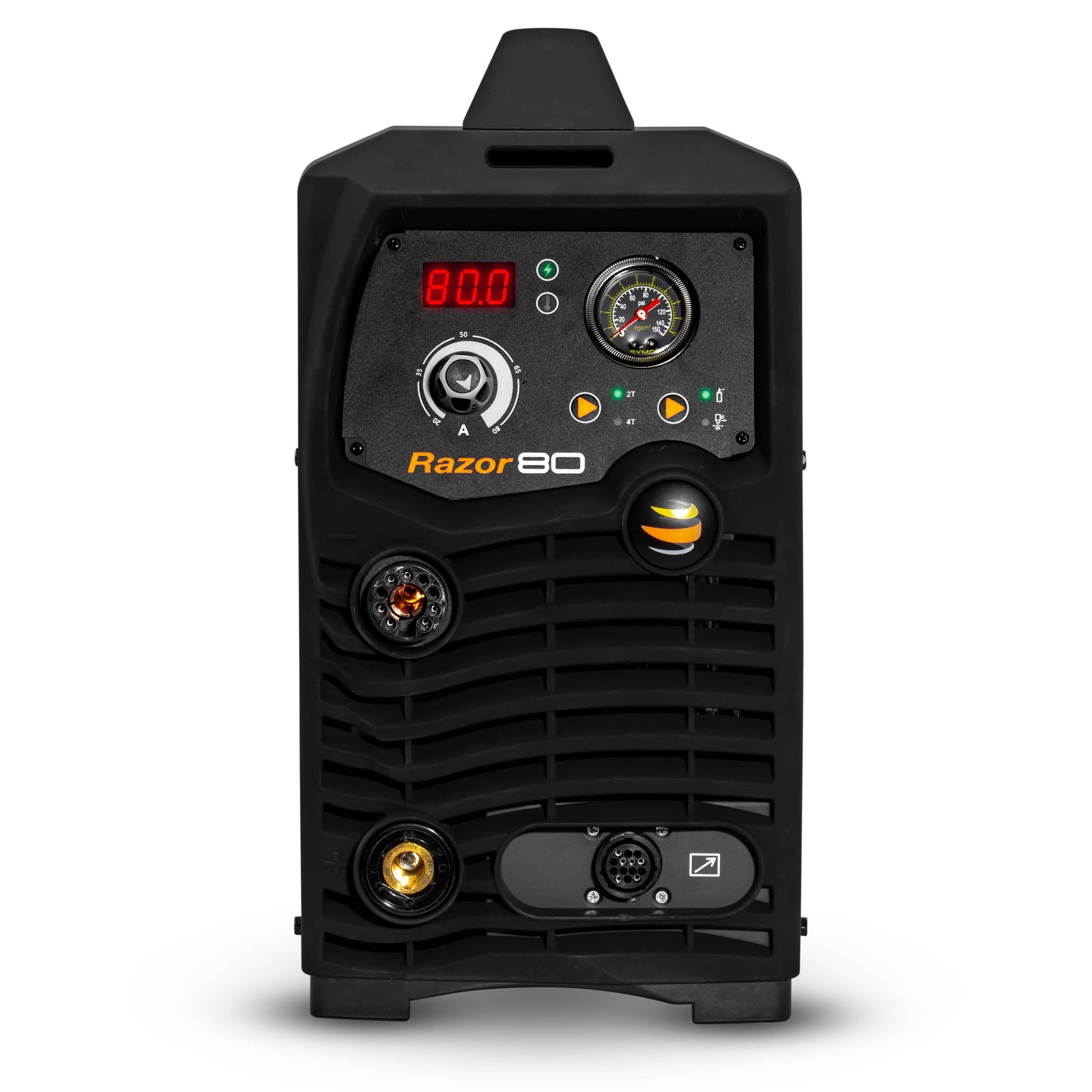

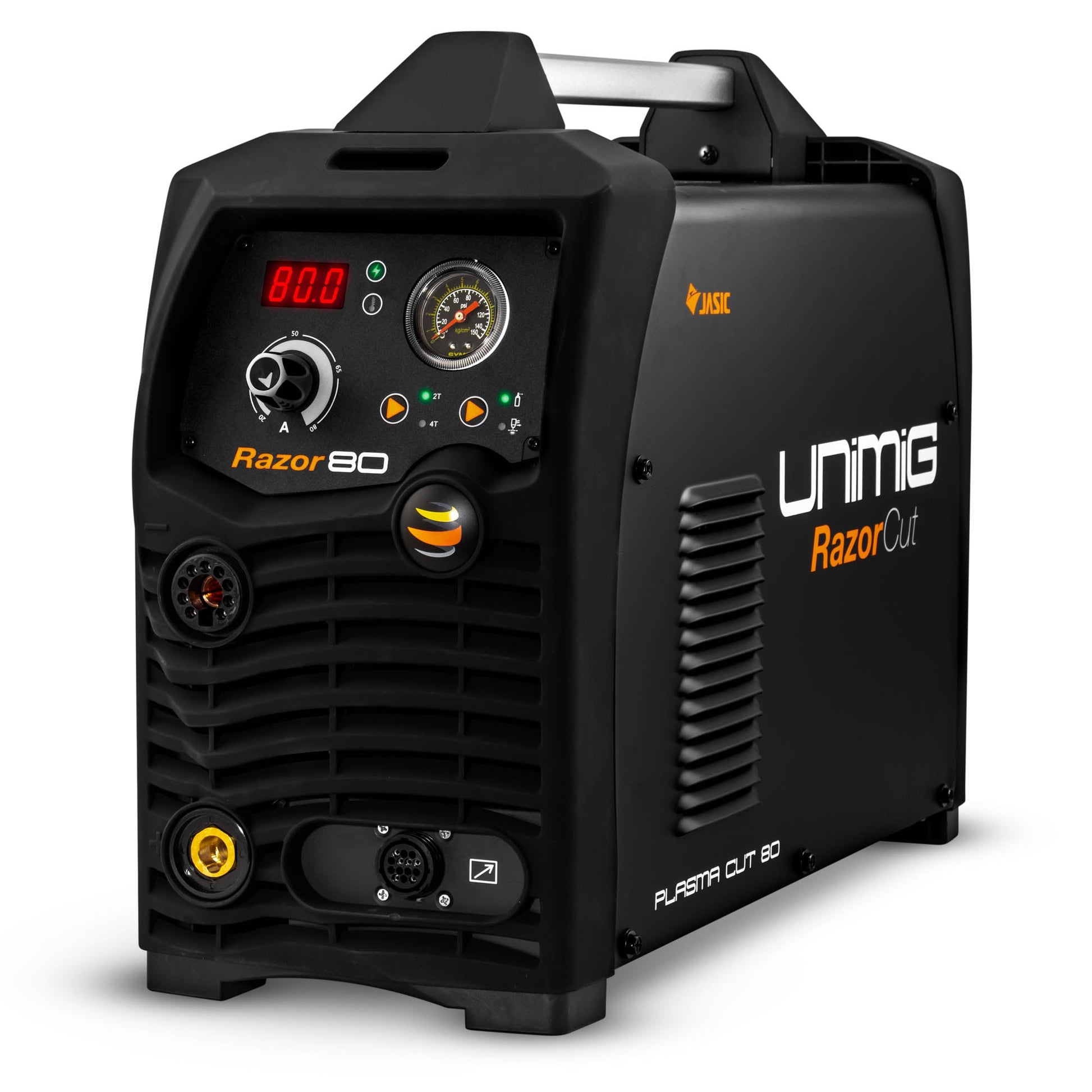

RAZOR CUT 80 PLASMA CUTTER

SKU:UMGKUPJRRW80

Vendor: UNIMIG

Regular price $2,232.00
Regular price Sale price $2,232.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.

View full details

The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.

PILOT ARC START

Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.



Product No: KUPJRRW80



PRIMARY INPUT VOLTAGE

415V Three Phase

SUPPLY PLUG

No plug supplied (20 AMP Recommended)

RATED INPUT POWER (kVA)

15.0

NO LOAD VOLTAGE (V)

340

PROTECTION CLASS

IP21S

INSULATION CLASS

F

MINIMUM GENERATOR (kVA)

15.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

WARRANTY (Years)

3



SIZE & WEIGHT

DIMENSIONS (mm)

560x220x415mm

WEIGHT (kg)

16kg

MACHINE FEATURES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning



PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-80A

PLASMA CUT DUTY CYCLE @ 40°C

40% @ 80A

MILD STEEL CUT THICKNESS

30mm

MILD STEEL SEVERANCE THICKNESS

35mm

ALUMINIUM CUT THICKNESS

16mm

ALUMINIUM SEVERANCE THICKNESS

20mm

STAINLESS STEEL CUT THICKNESS

16mm

STAINLESS STEEL SEVERANCE THICKNESS

20mm

AIR FLOW DRAW OFF (L/min)

189

AIR FLOW PRESSURE (Bar)

5.17 (75 psi)

PLASMA ARC START

Pilot Arc
