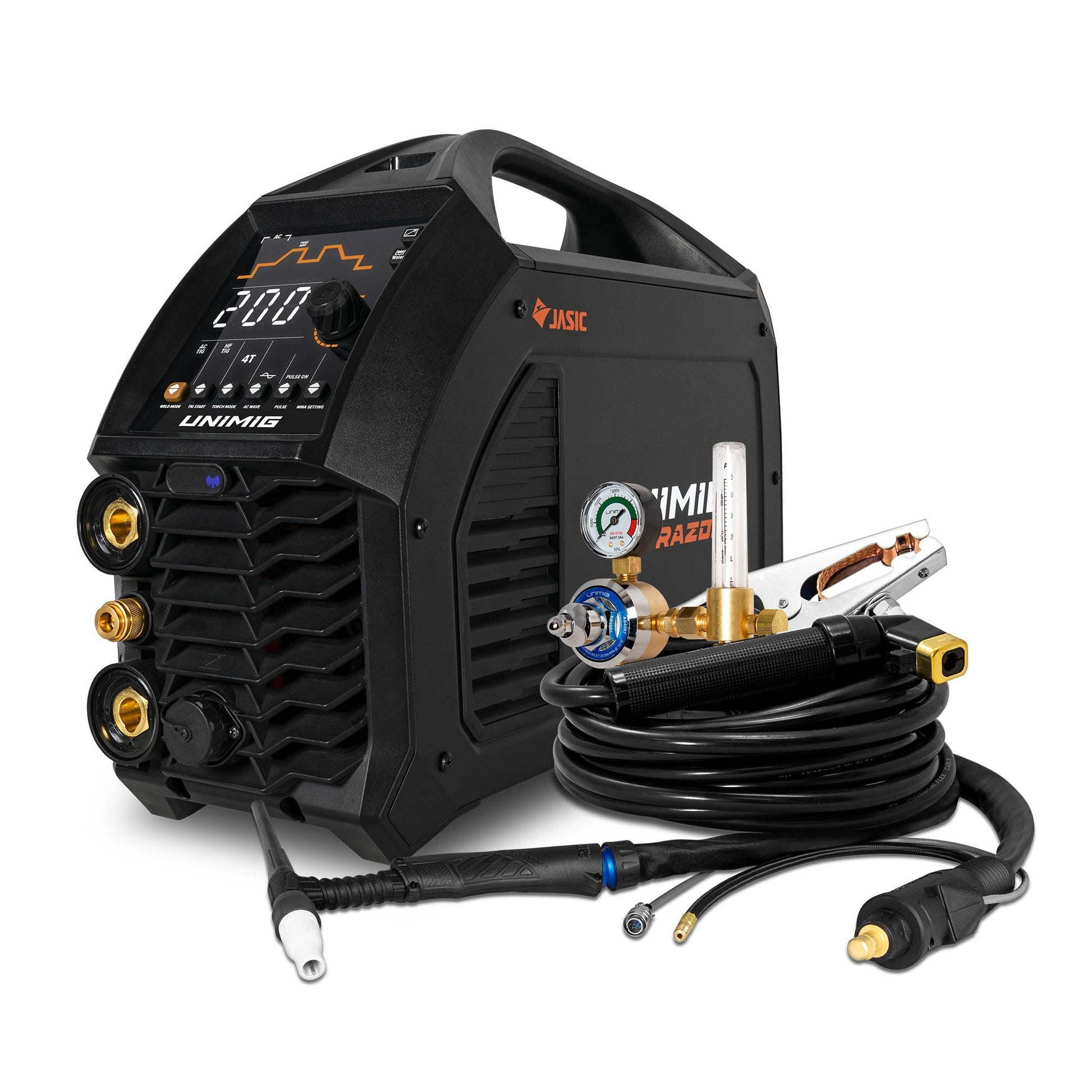

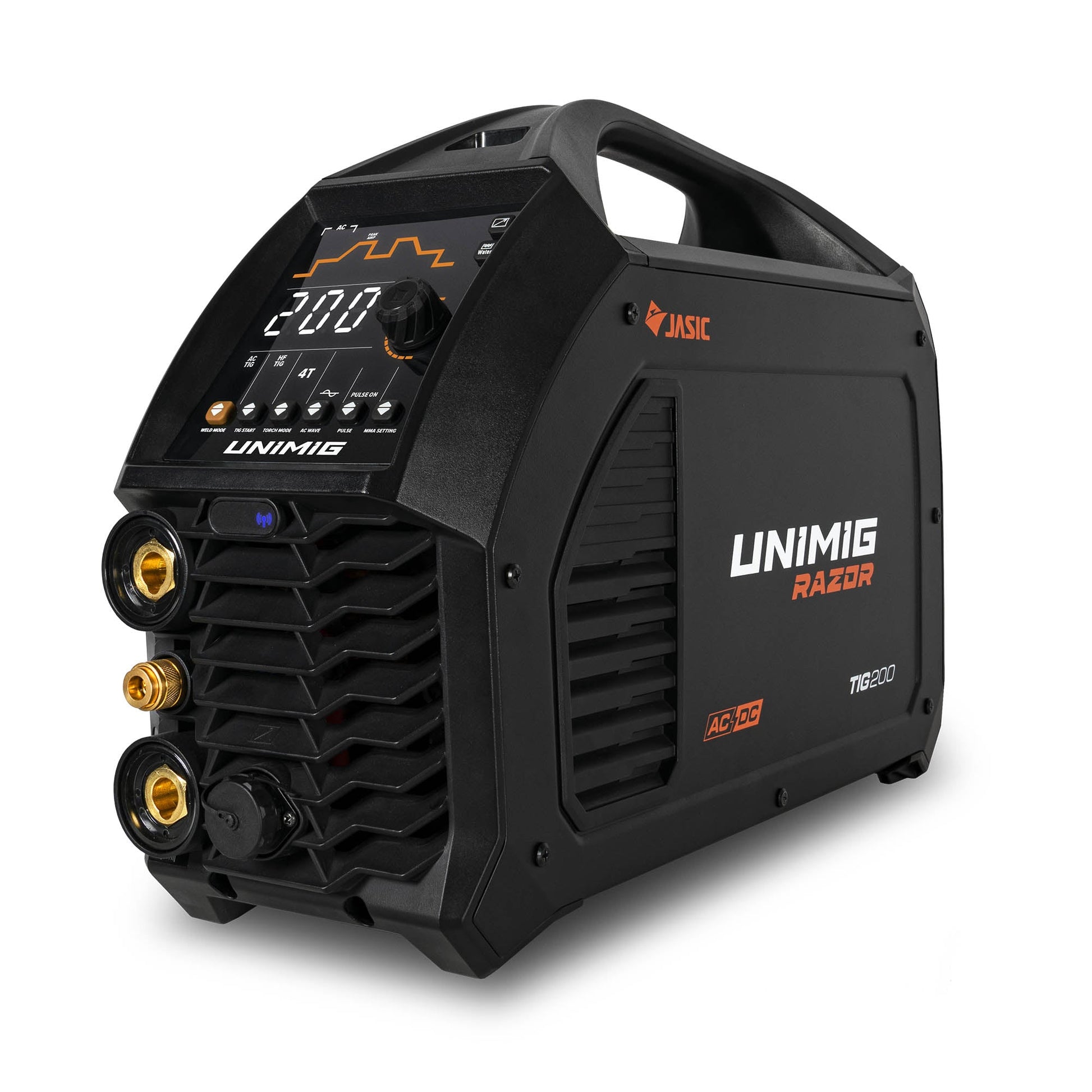

RAZOR TIG 200 AC/DC WELDER

UMGU12002K

Vendor: UNIMIG

$1,999.00
$1,999.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.
View full details

Get incredible results from start to finish with this professional-grade TIG welder.

  • Effortlessly weld any metal with the high-frequency AC/DC TIG
  • The ultimate combination of AC and DC available with Mixed Arc settings
  • Switch your AC welds to suit your needs with the choice of four waveforms

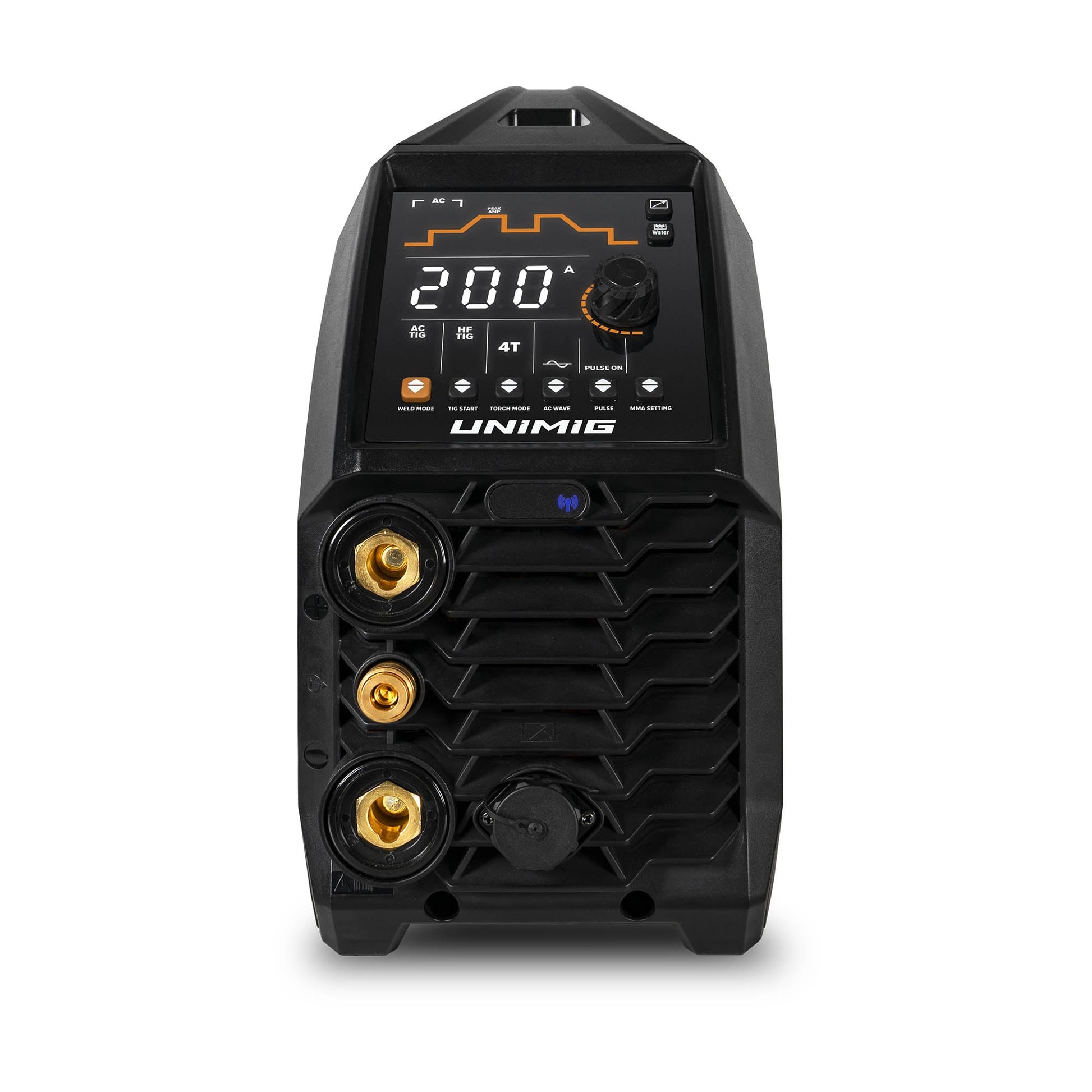

HD Backlit Interface

This next generation interface panel is bright and easy to read in any environment.



Power Factor Correction (PFC)

PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.



10 AMP PLUG

A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.



AC/DC

Weld every kind of metal. With the ability to run on an Alternating Current, you’re able to weld aluminium as effortlessly as mild and stainless steels.



High-Frequency TIG

Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.



Multiple AC Waveforms

Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.



Mixed AC/DC

Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld thicker materials.



Pulse TIG

Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.



FOOT CONTROL READY

The perfect accessory, easily adjust your amperage to suit every weld as you go without disrupting your torch movement.



Smart Fan

Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.



Advanced MMA Features

The RAZOR TIG 200 AC/DC features adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.





Product No: U12002K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

9.8

RATED OUTPUT

5-200A

NO LOAD VOLTAGE (V)

65

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)

5

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG & AC/DC Pulse
TIG WELDING CURRENT RANGE

5-200A

TIG DUTY CYCLE @ 40°C

20% @ 200A, 60% @ 115A, 100% @ 90A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-160A

STICK DUTY CYCLE @ 40°C

15% @ 160A, 60% @ 80A, 100% @ 62A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm



SIZE & WEIGHT

DIMENSIONS (mm)

500×170×340mm

WEIGHT (kg)

11.7



MACHINE FEATURES

VRD

YES

FOOT CONTROL CONNECTION

YES
