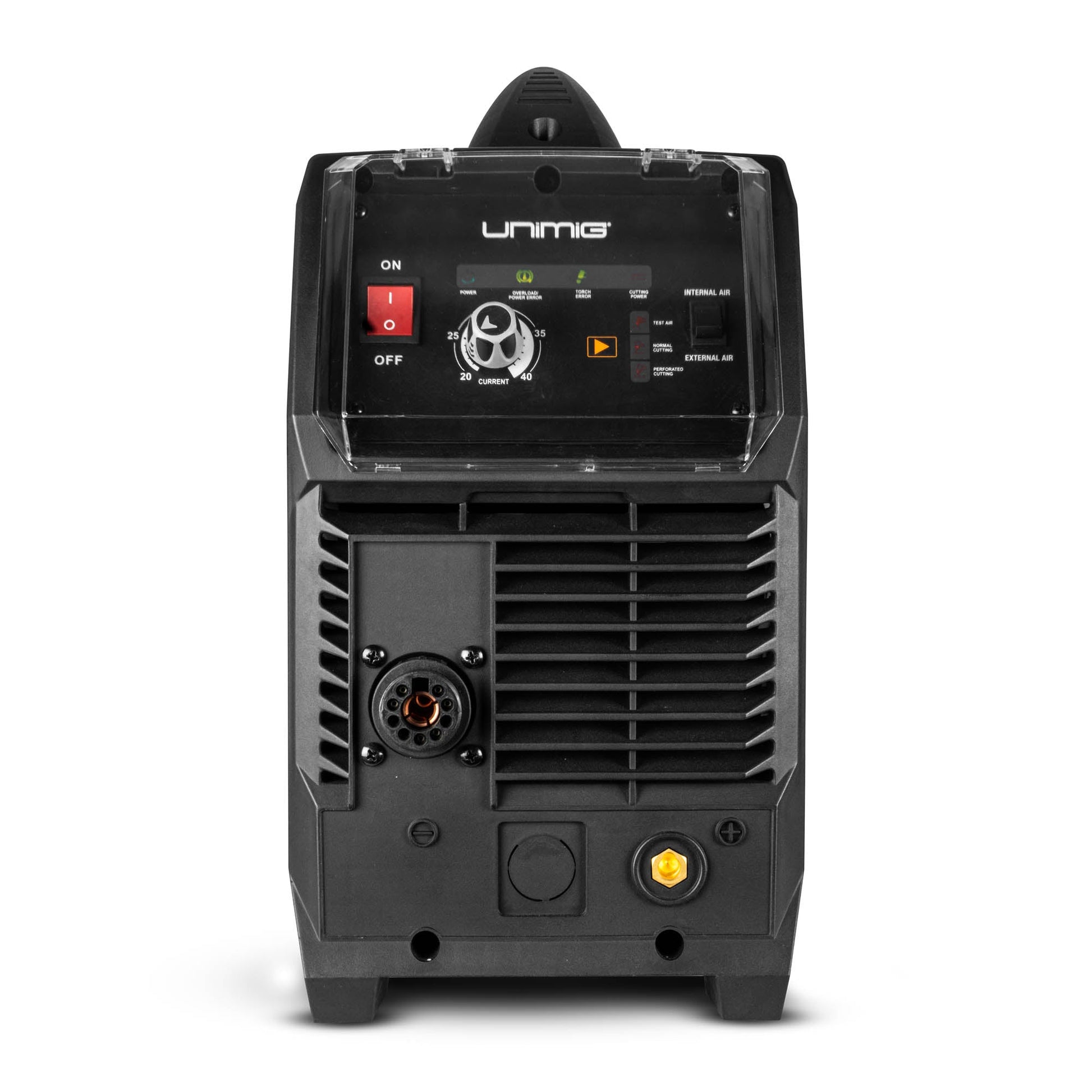

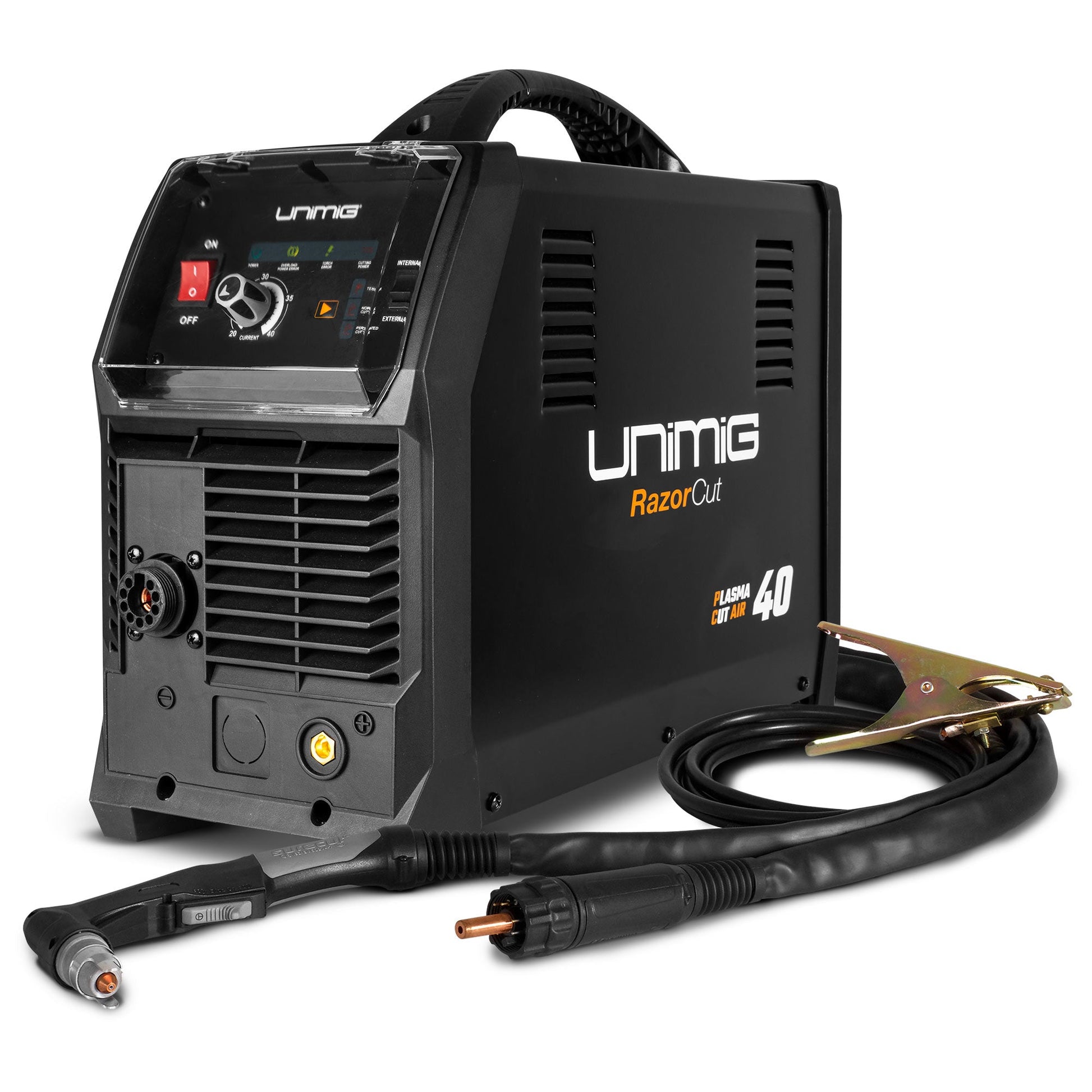

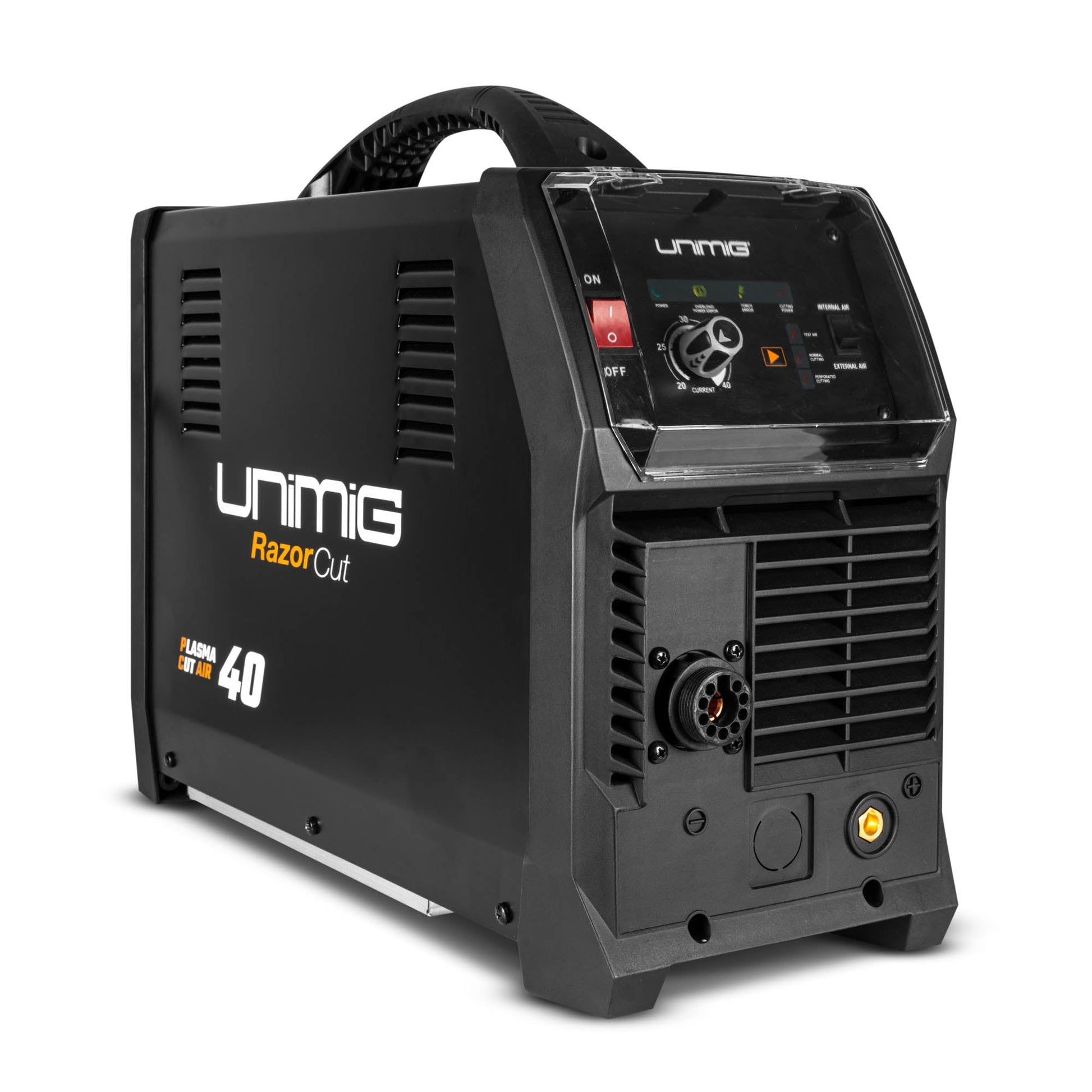

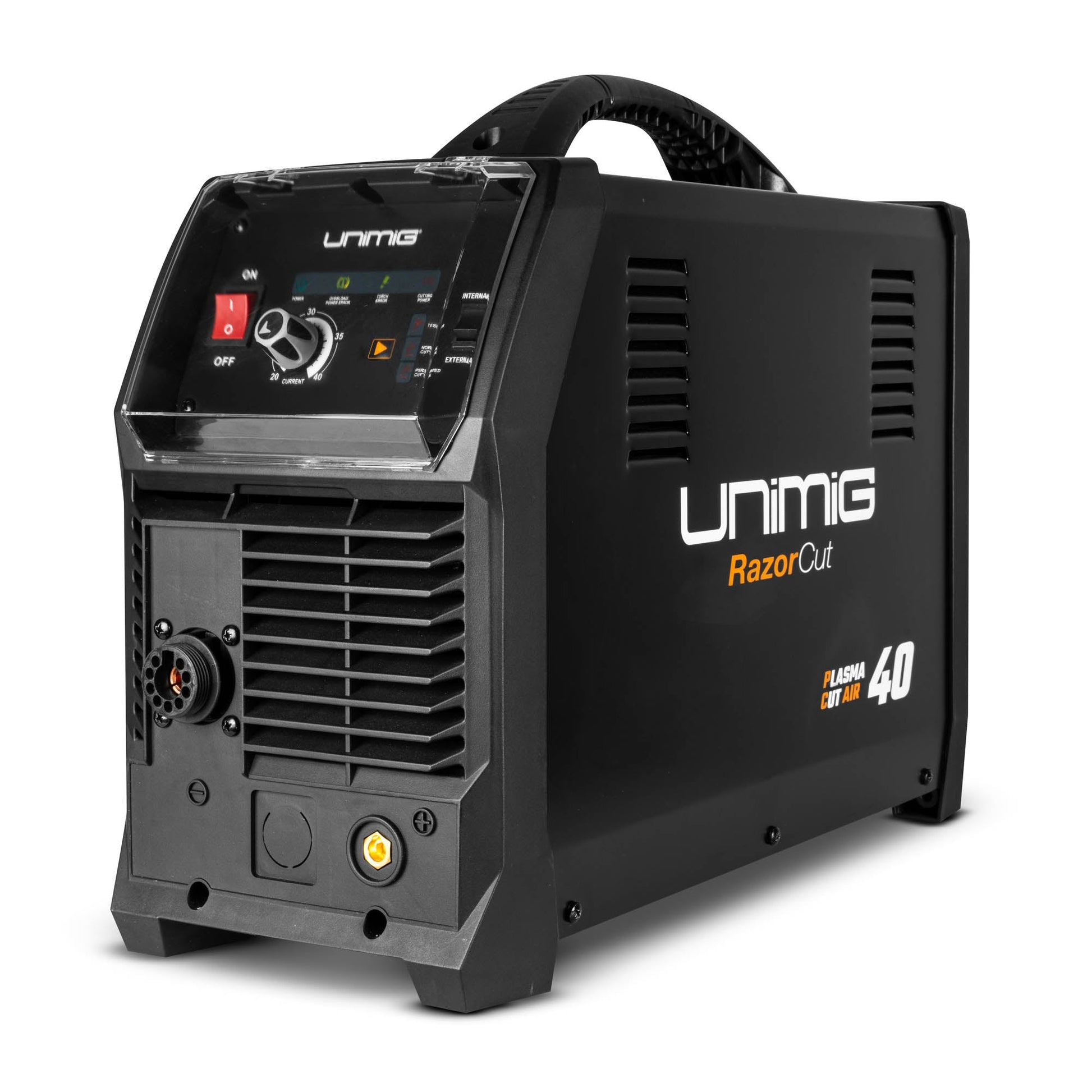

RAZOR CUT 40 AIR PLASMA CUTTER

UMGU14001K

Vendor: UNIMIG

$1,833.00
$1,833.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.
View full details

The RAZOR™ CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 40 AIR boasts some serious cutting power with 10mm clean-cut and 12mm severance on the built-in air compressor, and 16mm clean-cut and 20mm severance on an external compressor.

BUILT-IN AIR COMPRESSOR

The RAZOR CUT 40 AIR comes with a built-in air compressor, giving you more flexibility with a plasma cutter than ever before. Connect an external air compressor for even greater cutting power.

PERFORATED CUTTING MODE

Cuts both solid material and perforated materials with ease.

PILOT ARC START

Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.



Product No: U14001K



MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

7.2

Ieff (A)

15

RATED OUTPUT

96V

NO LOAD VOLTAGE (V)

210

PROTECTION CLASS

IP21

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

WARRANTY (Years)

3

SIZE & WEIGHT

DIMENSIONS (mm)

610x215x420mm

WEIGHT (kg)

18kg

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-40A

PLASMA CUT DUTY CYCLE @ 40°C

25% @ 40A / 60% @ 26A / 100% @ 20A

MILD STEEL CUT THICKNESS

12mm (INTERNAL) / 16mm (EXTERNAL)

MILD STEEL SEVERANCE THICKNESS

14mm (INTERNAL) / 18mm (EXTERNAL)

ALUMINIUM CUT THICKNESS

6mm (INTERNAL) / 8mm (EXTERNAL)

ALUMINIUM SEVERANCE THICKNESS

8mm (INTERNAL) / 10mm (EXTERNAL)

STAINLESS STEEL CUT THICKNESS

6mm (INTERNAL) / 8mm (EXTERNAL)

STAINLESS STEEL SEVERANCE THICKNESS

8mm (INTERNAL) / 10mm (EXTERNAL)

AIR FLOW DRAW OFF (L/min)

120

AIR FLOW PRESSURE (Bar)

5.17 (75 psi)

PLASMA ARC START

Pilot Arc
