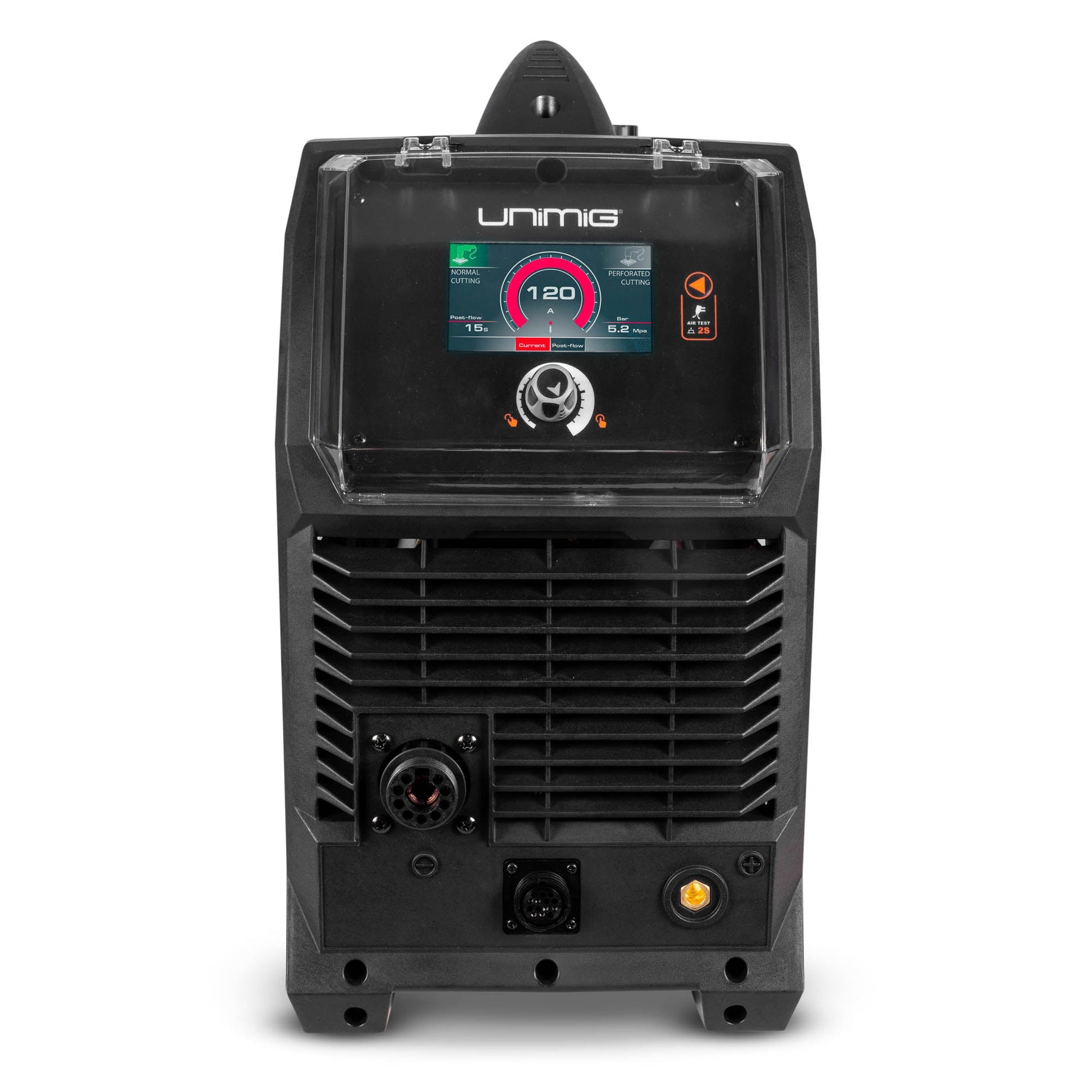

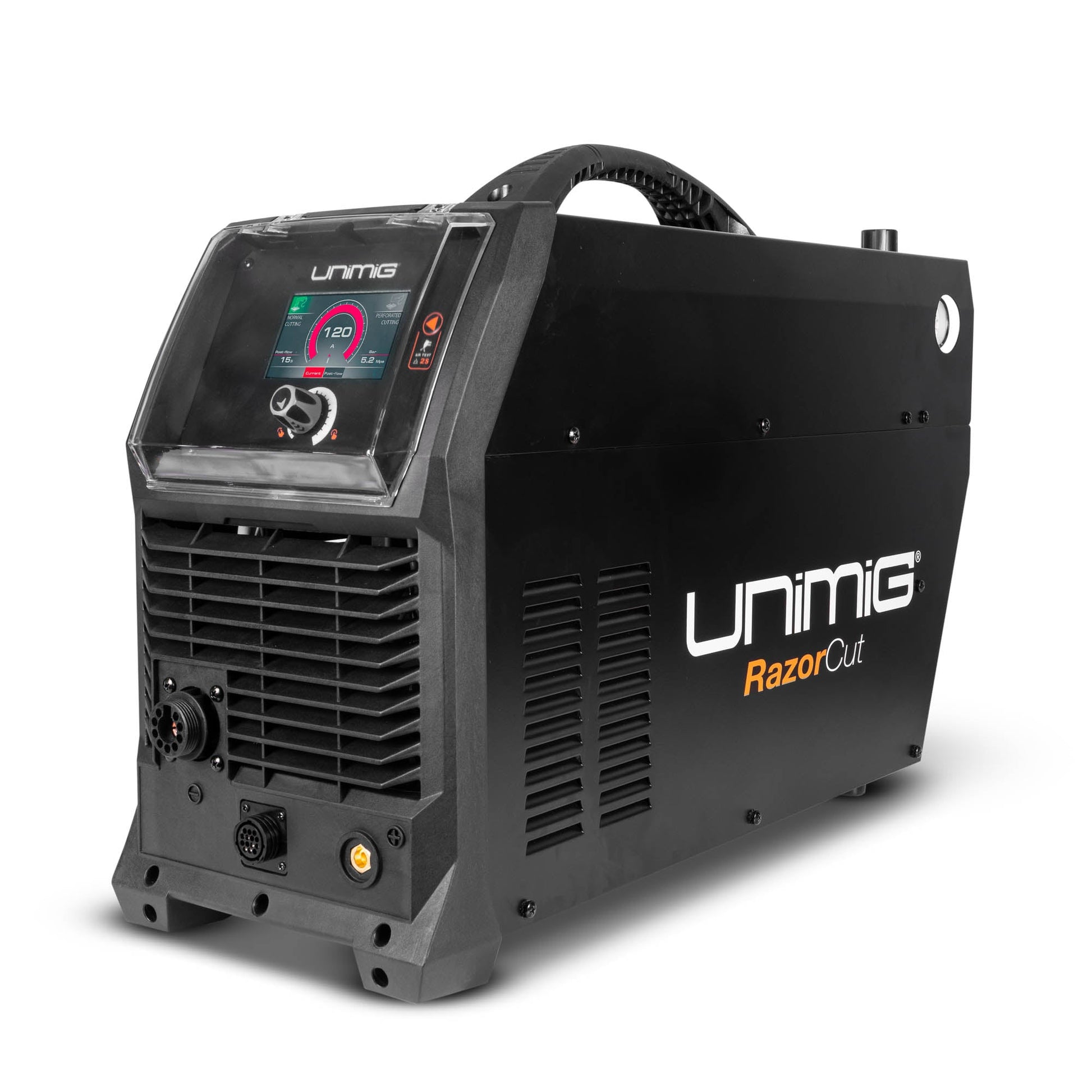

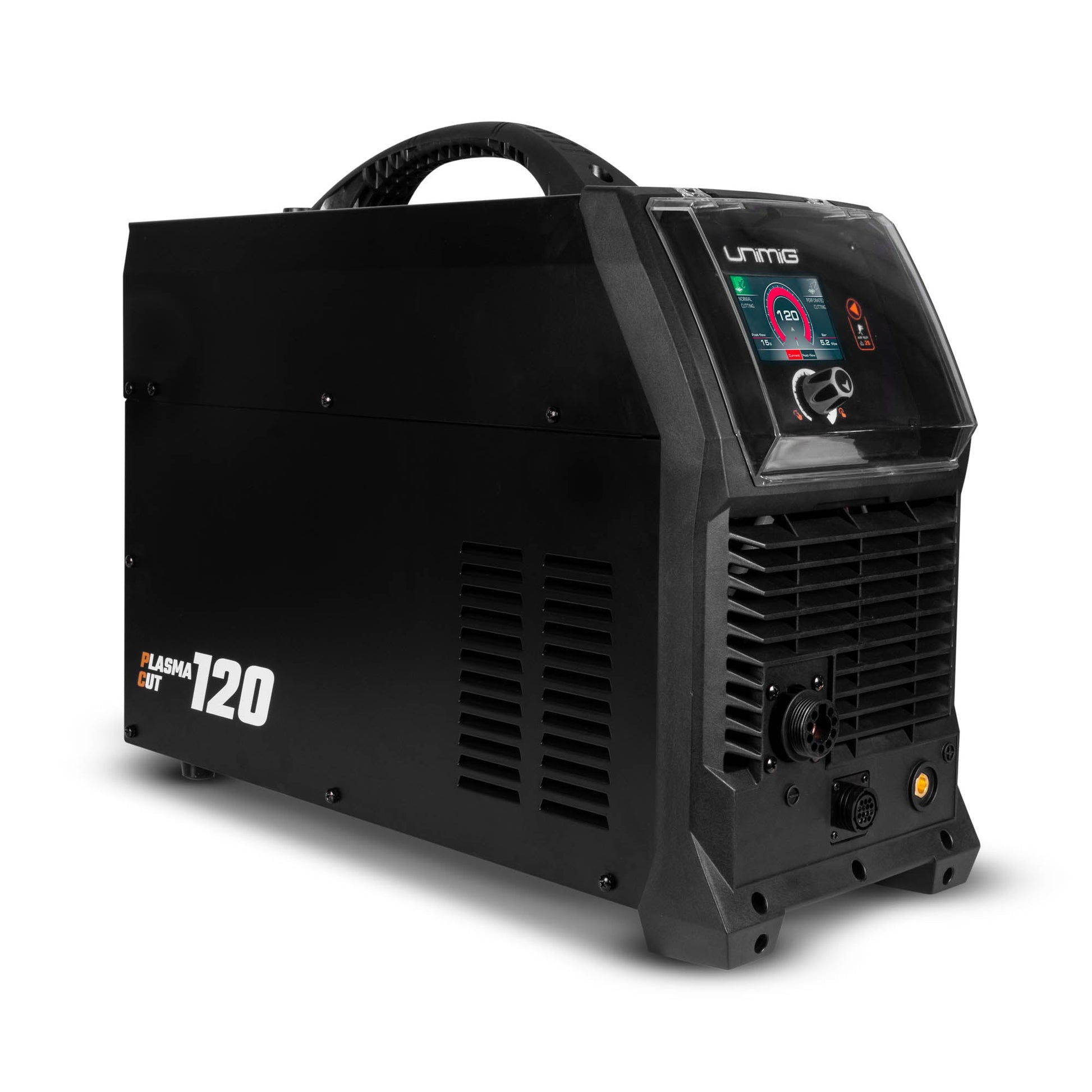

RAZOR CUT 120 PLASMA CUTTER

SKU:UMGU14002K

Vendor: UNIMIG

Regular price $4,075.00
Regular price Sale price $4,075.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping is calculated at checkout.

View full details

The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.

PILOT ARC START

Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.



Product No: U14002K



MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

415V Three Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

26.0

NO LOAD VOLTAGE (V)

420

PROTECTION CLASS

IP21

INSULATION CLASS

F

MINIMUM GENERATOR (kVA)

15.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

WARRANTY (Years)

3



SIZE & WEIGHT



WEIGHT (kg)

24kg

MACHINE FEATURES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning



PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-120A

PLASMA CUT DUTY CYCLE @ 40°C

60% @ 120A, 100% @ 100A

MILD STEEL CUT THICKNESS

45mm

MILD STEEL SEVERANCE THICKNESS

60mm

ALUMINIUM CUT THICKNESS

36mm

STAINLESS STEEL CUT THICKNESS

45mm

AIR FLOW DRAW OFF (L/min)

189

AIR FLOW PRESSURE (Bar)

5.17 (75 psi)

PLASMA ARC START

Pilot Arc
